Shop CENTURY

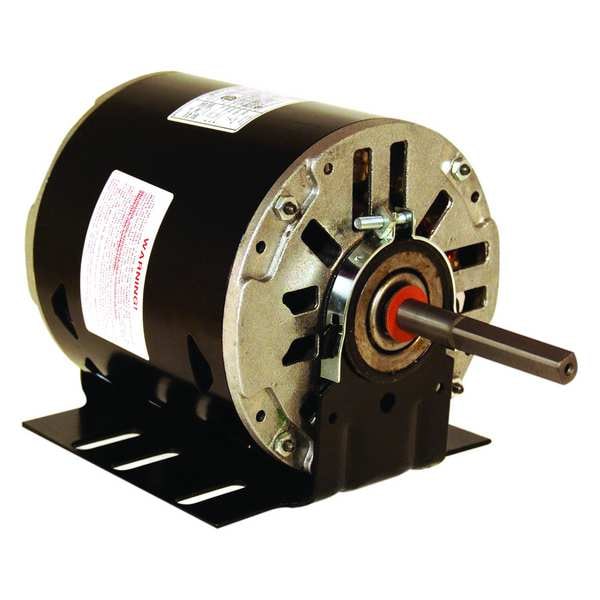

Motor, 1 HP, OEM Replacement Brand: Hill Refrigeration Replacement For: 5KCP39GC030S

  • Mfr # OHR1106

  • Zoro # G2350704

product price:  $480.99
/ea
Free Shipping & Returns

Key Features

Frame
48Y
HP
1 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OHR1106
Zoro #
G2350704
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2"
Shaft Length
3.8"
Length Less Shaft
6 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr
Overall Length
9.74"
Body Diameter
5.7 in
Frame Size
48Y
Shaft Diameter
1/2 in
Wire Rope Length
9 3/4 in

Details

Frame
48Y
HP
1 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Hill Refrigeration
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Ball
Replacement For
5KCP39GC030S
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Duty
Air Over
Full Load Amps
7.1/6.4A
Capacitor Required
2MDV9
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Usable @ 208V
Usable at 208V
Weight
18 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Rotation
CW/CCW
Mounting
Cradle Base
Number of Speeds
1
Ambient Temperature - Maximum
50 Degrees C
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Motor Enclosure Type
Open Air Over
Compatible Brand
Hill Refrigeration
Full Load Current @ 60 Hz
7.1/6.4 A
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Frame Material
Steel
Bearing Type
Ball
Mounting Position
Horizontal

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 7.1/6.4 A, 48Y Frame, OEM Replacement Brand Hill Refrigeration, Replacement For 5KCP39GC030S, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
