Shop CENTURY

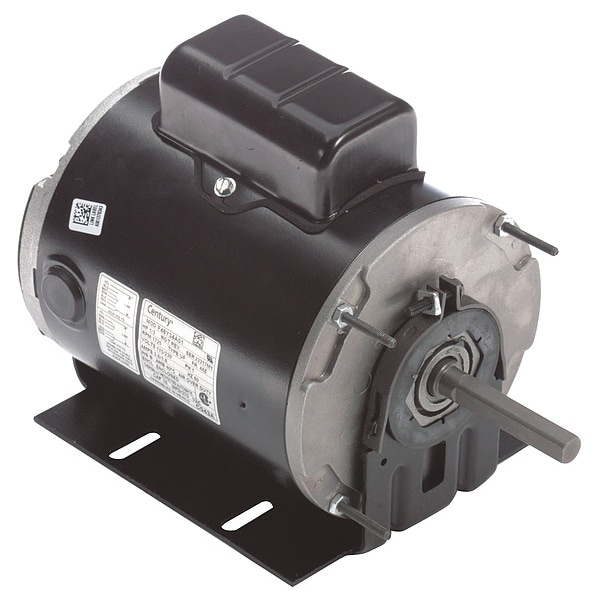

Direct Drive Fan/Blower Motor, 1/3 hp

  • Mfr # C043A

  • Zoro # G0794145

product price:  $284.99
/ea
Free Shipping & Returns

Key Features

Frame
48Z
HP
1/3 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C043A
Zoro #
G0794145
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
3.14"
Length Less Shaft
6 15/16 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
10.09"
Stud Size
#10-32
Mounting Stud Length
1 3/100 in
Body Diameter
5.6 in
Frame Size
48Z
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32

Details

Frame
48Z
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Direct Drive Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1725 rpm
No. of Speeds
1
Number of Shafts
1
Phase
1
RPM Range
1,701-1,800
Voltage
115/230V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
3.6/1.8A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1
Application
Fan
Voltage Compatibility
115V AC, 230V AC
Includes
Key Polybag (3898-4), Spacer (17P90-1)
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Usable @ 200V
Usable at 200V
Weight
20 lb
Motor Mounting Position
All Angle
Output Watts
0.25 kW
Inverter Rated
No
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Inverter Rating
Not Inverter Rated
Nameplate Service Factor @ 60 Hz
1
Wattage
250 W
Frame Material
Steel
Number of Speeds
1
Product Type
Fan and Blower Motor
Bearing Type
Ball
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Flat
Mounting Position
All Angle
Full Load Current @ 60 Hz
3.6/1.8 A
Frequency
60 Hz

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 3.6/1.8 A Full Load Amps, 48Z Frame, Output Watts 0.25 kW, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Frame Material Steel, Inverter Rated No
