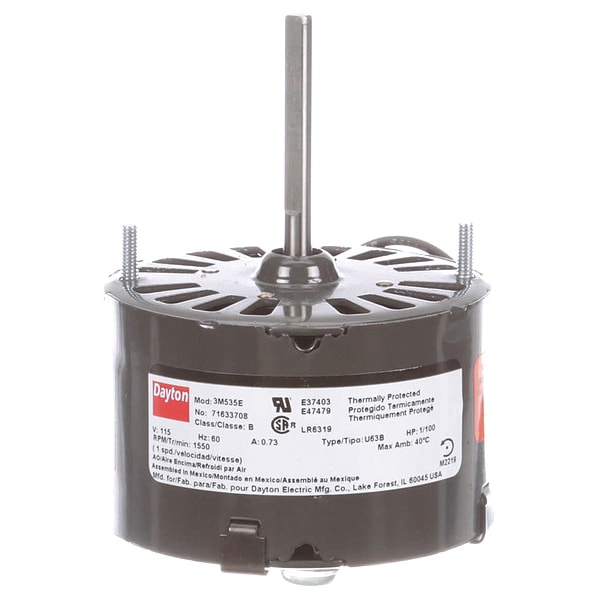

Dayton HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 71633708M - main

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633708M

  • Zoro # G2335706

product price:  $54.39
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71633708M
Zoro #
G2335706
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Shaft Length
2 1/4 in
Cord Length
12 in
Body Dia.
3 5/16 in
Length Less Shaft
2 3/4 in
Shaft Diameter
1/4 in
Overall Length
4 7/16 in
Frame Size
3.3
Body Diameter
3.3 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,501-1,600
Motor Application
HVAC/R
Ins. Class
B
Stud/Base Mtg. Pattern
2-7/8 in
Standards
CSA Certified, UL Recognized
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Frame
3.3
Motor Thermal Protection
Auto
Phase
Single
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Mounting Pattern
2 7/8
Mounting Stud Location
2/Shaft End
Item
HVAC Motor
Motor Mounting Type
Ring/Stud
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty
Continuous
Motor Shaft Design
Flat
Motor Service Factor
1
Full Load Amps
0.7 A
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Motor Design
Shaded Pole
Motor Shaft Rotation
CCWSE
Motor Bearings
Sleeve
Number of Shafts
1
Capacitor Required
Capacitor Not Required
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting Stud Pattern
2 7/8 in
Type
OEM Replacement
Mounting
Stud
Drive Type
Direct Drive
Bearing Type
Sleeve
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Frame Material
Steel
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Wattage
7.4 W
Full Load Current @ 60 Hz
0.7 A

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.7 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
