Shop CENTURY

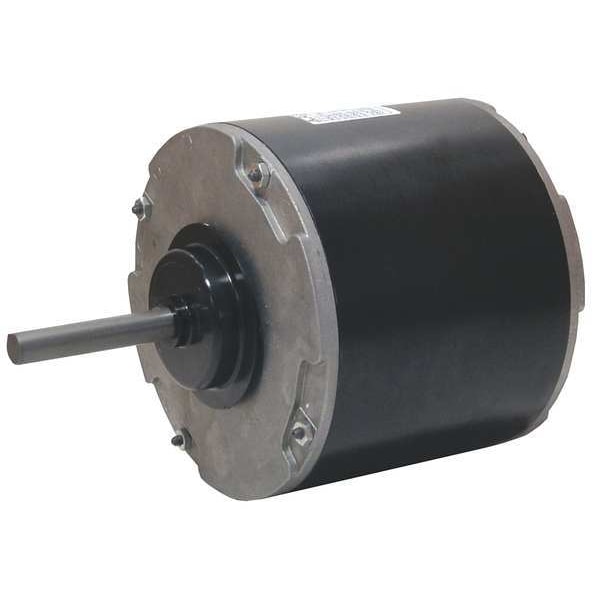

Motor, 1/3 HP, OEM Replacement Brand: Aaon Replacement For: F48A11A27C

  • Mfr # OAN010

  • Zoro # G3940474

product price:  $372.99
/ea
Free Shipping & Returns

Key Features

Frame
48Y
HP
1/3 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OAN010
Zoro #
G3940474
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
2 3/4 in
Length Less Shaft
5 1/4 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr
Overall Length
8 in
Shaft Diameter
1/2 in
Wire Rope Length
8 in
Body Diameter
5.7 in
Frame Size
48Y

Details

Frame
48Y
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1100 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Aaon
Phase
1
RPM Range
1001-1100
Voltage
460V
Motor Bearings
Ball
Replacement For
F48A11A27C
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Air Over
Full Load Amps
1A
Capacitor Required
2MDV6
Standards
UL Recognized (E46412), CSA Certified (LR43341)
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
208-230/460V AC, 460V AC
Usable @ 208V
Not Usable at 208V
Weight
15 lb
Motor Mounting Position
Vertical Shaft Up
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Rotation
CCWLE
Mounting
Band
Number of Speeds
1
Shaft Design
Flat
Compatible Brand
Century
Bearing Type
Ball
Full Load Current @ 60 Hz
1.0 A
Product Type
Condenser Fan Motor
Mounting Position
Vertical Shaft Up
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Frame Material
Steel
Ambient Temperature - Maximum
60 Degrees C
Insulation Class
B
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.0 A, 48Y Frame, OEM Replacement Brand Aaon, Replacement For F48A11A27C, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
