Shop U.S. MOTORS

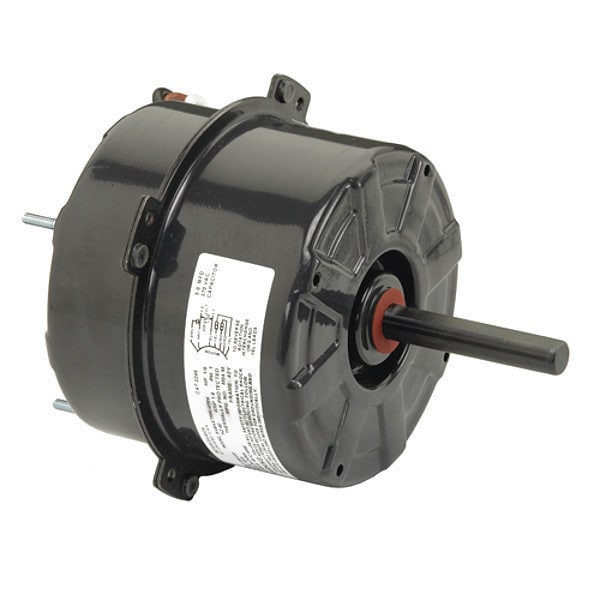

Motor, 1/8HP, 1075RPM, 60HZ, 208-230V

  • Mfr # 2249

  • Zoro # G0917714

product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2249
Zoro #
G0917714
UPC #
786382072803
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/4 in
Lead Length
42 in
Length Less Shaft
4 3/32 in
Body Dia.
5 in
Stud Size
8-32
Bolt Circle Dia.
4 5/16 in
Overall Length
6 27/32 in
Body Diameter
5 in
Frame Size
42
Bolt Circle Diameter
4 5/16 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Wire Rope Length
6 27/32 in
Length
6 27/32 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/8
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CCWLE
Frame
42
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
Vertical Shaft Down
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Voltage Compatibility
208V AC, 230V AC
Application
Permanent Split Capacitor Condenser Fans
Duty
Totally Enclosed Air Over
Hz
60 Hz
Features
Overload Protector, Shaft-Down Mounting
Full Load Amps
0.90 A
Motor Bearings
Ball
Standards
CSA Certified, UL Listed
Number of Speeds
1
Drive Type
Direct Drive
Product Type
Condenser Fan Motor
Frame Material
Steel
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
0.9 A
Bearing Type
Ball
Capacitor Required
Capacitor Not Included

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.9 A Full Load Amps, 42 Frame, 60 Hz Hz, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position Vertical Shaft Down, Shaft Length 2 3/4 in, Lead Length 42 in, Shaft Dia. 1/2 in
