  11. Motor, 1/5 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-20681-01
Shop All OEM Replacement Motors
Century

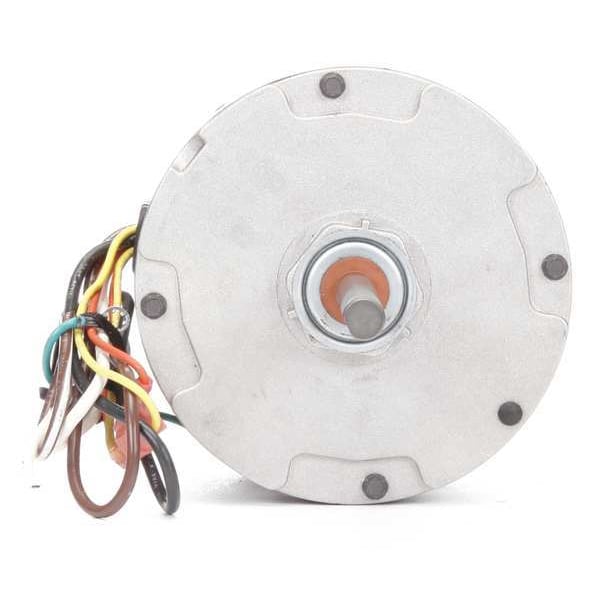

Motor, 1/5 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-20681-01

product price: $157.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Frame 48Y
  • HP 1/5 HP
  • Motor Application OEM Replacement
  • Motor Design Permanent Split Capacitor
  • Motor Enclosure Design Totally Enclosed
See all product information

Product Information

Dimensions

Shaft Dia. 1/2"
Shaft Length 4.3"
Length Less Shaft 5 1/4 in
Bolt Circle Dia. 5-3/16"
Body Dia. 5.7"
Manufacturers Warranty Length 1 yr.
Overall Length 7-5/8"
Stud Size #8-32

Details

Frame 48Y
HP 1/5 HP
Item Motor
Motor Application OEM Replacement
Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed
Motor Mounting Type Extended Studs
Motor Shaft Rotation Reversible
Motor Sub Application Condenser Fan Motor
Motor Thermal Protection Automatic
Nameplate RPM 1075 rpm
No. of Speeds 1
Number of Shafts 1
OEM Replacement Brand Rheem/Ruud
Phase 1
RPM Range 1001-1100
Voltage 208-230V
Motor Bearings Sleeve
Replacement For 51-20681-01
Ins. Class B
Max. Ambient Temp. 40 Degrees C
Duty Air Over
Full Load Amps 1.4-1.4A
Capacitor Required 2MDV2
Standards UL Recognized, CSA Certified
Motor Shaft Design Flat
Hz 60 Hz
Motor Service Factor 1.00
Application Condenser Fan
Mounting Stud Pattern 3-5/8" x 3-5/8"
Voltage Compatibility 115/208-230V AC, 208-230V AC, 208-240V AC
Motor Frame Material Steel
Usable @ 200V No
Motor Mounting Position All Angle
Weight 10 lb
Usable @ 208V Yes
Rotation CW/CCW

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.4 A, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 51-20681-01, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
