Shop CENTURY

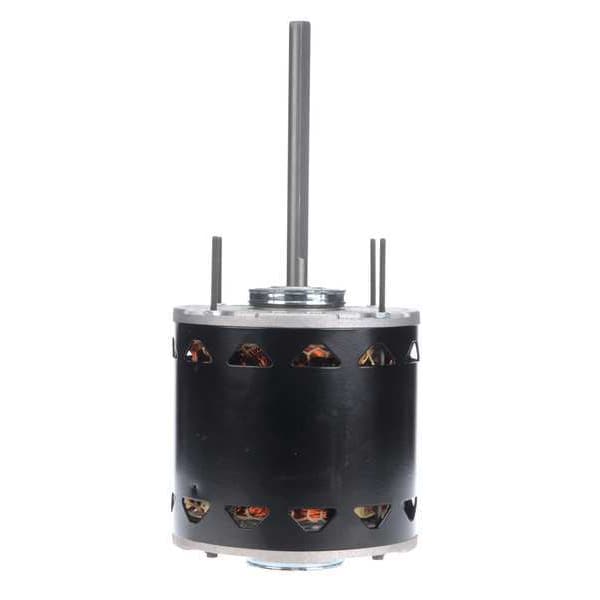

Motor, PSC, 3/4 HP, 1075,208-230V, 48Y, OAO

  • Mfr # FD1076
  • Zoro # G3257877
product price:
$
295.99
/ea
Free Shipping & Returns

Key Features

Ins. Class
B
No. of Speeds
3
Motor Sub Application
Direct Drive Fan/Blower
Motor Application
HVAC/R
Motor Thermal Protection
Auto
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD1076
Zoro #
G3257877
UPC #
-
Country of Origin
India

Dimensions

Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/4 in
Shaft Dia.
1/2 in
Shaft Length
6 7/16 in
Length Less Shaft
6 3/8 in
Stud Size
#8-32
Overall Length
12 5/16 in
Lead Length
26 in
Frame Size
48Y
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Resilient Ring Diameter
2 1/4 in
Shaft Diameter
1/2 in
Wire Rope Length
12 5/16 in
Length
12 5/16 in

Details

Ins. Class
B
No. of Speeds
3
Motor Sub Application
Direct Drive Fan/Blower
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Mounting Type
Ring
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Application
Fan/Blower
Duty
Continuous
Includes
Belly Band, Resilient Mounting Ring
Motor Design
Permanent Split Capacitor
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
All Angle
Phase
Single
Voltage
208V AC to 230V AC
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
Nameplate RPM
1,075
Item
Fan and Blower Motor
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Capacitor Required
Capacitor Not Included
RPM Range
1,001-1,100
HP
3/4
Motor Service Factor
1
Max. Ambient Temp.
50 Degrees C
Full Load Amps
4.09 A
Frame
48Y
Mounting Stud Location
4/Shaft End
Standards
CSA Certified, UL Recognized
Ring to Ring Center
5 15/16 in
Mounting Holes
(4) #8-32
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Motor Frame Material
Steel
Weight
18 lb
Usable @ 208V
Usable at 208V
Number of Shafts
1
Mounting
Stud
Number of Speeds
3
Motor Enclosure Type
Open Air Over
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Frequency
60 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
50 Degrees C
Frame Material
Steel
Mounting Position
All Angle
Sub Application
General Purpose
Wattage
560W
Full Load Current @ 60 Hz
4.09 A
Shaft Design
Flat

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 4.09 A Full Load Amps, 48Y Frame, Output Watts 560W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
