Shop CENTURY

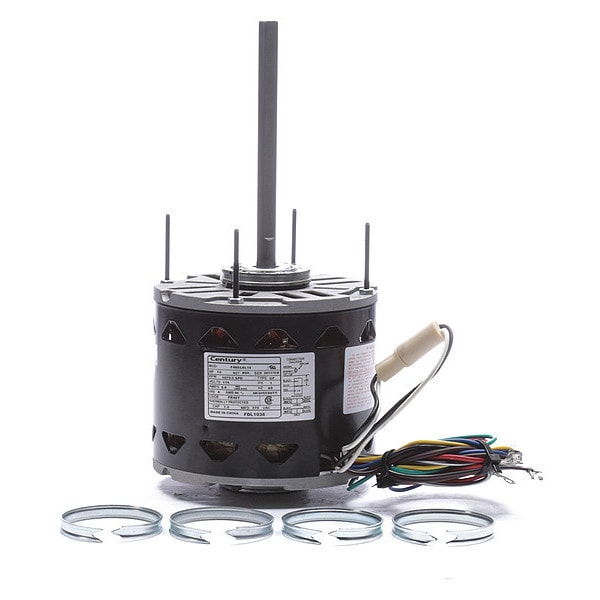

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48Y, OAO

  • Mfr # FDL1036

  • Zoro # G2586665

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Body Dia.
5 5/8 in
Motor Mounting Position
Horizontal
Resilient Ring Dia.
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FDL1036
Zoro #
G2586665
UPC #
-
Country of Origin
India

Dimensions

Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
6 1/2 in
Shaft Dia.
1/2 in
Length Less Shaft
5 5/8 in
Stud Size
#8-32
Overall Length
11 9/16 in
Lead Length
26 in
Resilient Ring Diameter
2 1/4 in
Shaft Diameter
1/2 in
Frame Size
48Y
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in

Details

Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Mounting Position
Horizontal
Motor Mounting Type
Ring
Motor Bearings
Ball
Motor Sub Application
Direct Drive Fan/Blower
Phase
Single
Duty
Continuous
Includes
Belly Band, Resilient Mounting Ring
Frame
48Y
Application
Fan/Blower
Max. Ambient Temp.
50 Degrees C
Hz
60 Hz
No. of Speeds
3
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
Ring to Ring Center
5 3/16 in
Motor Application
HVAC/R
Mounting Stud Location
4/Shaft End
Nameplate RPM
1,075
Ins. Class
A
Motor Enclosure Design
Open Air-Over
Motor Design
Permanent Split Capacitor
Item
Fan and Blower Motor
Voltage
115V AC
Full Load Amps
5.09 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
HP
1/3
Motor Thermal Protection
Auto
Motor Service Factor
1
Capacitor Required
Capacitor Not Included
Stud Quantity
4
Number of Shafts
1
Weight
14 lb
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #8-32
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Mounting
Stud
Number of Speeds
3
Full Load Current @ 60 Hz
5.09 A
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Mounting Position
Horizontal
Insulation Class
A
Ambient Temperature - Maximum
50 Degrees C
Wattage
250 W
Shaft Design
Flat
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Sub Application
General Purpose
Frame Material
Steel
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 5.09 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
