Shop All Permanent Split Capacitor Blower Motors
Century

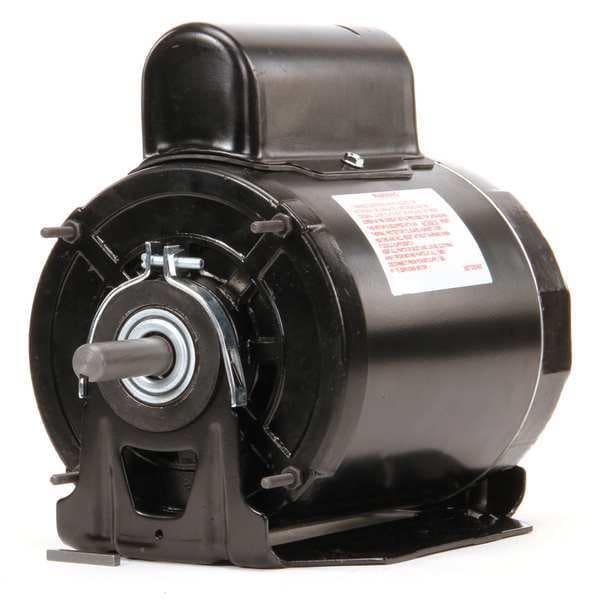

Motor, PSC, 3/4 HP, 1075,115/230V, 56, TENV

product price: $336.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Mounting Type Cradle Base
  • Voltage 115/230V AC
  • Stud Size #10-32
  • Bolt Circle Dia. 5 13/16 in
  • Application Blowers, Fans and Air Circulators
See all product information

Product Information

Dimensions

Stud Size #10-32
Bolt Circle Dia. 5 13/16 in
Shaft Dia. 5/8 in
Body Dia. 6 1/2 in
Length Less Shaft 9 5/16 in
Shaft Length 2 in
Resilient Ring Dia. 2 1/2 in
Overall Length 11 5/16 in

Details

Motor Mounting Type Cradle Base
Voltage 115/230V AC
Application Blowers, Fans and Air Circulators
Frame 56
Mounting Stud Location Shaft End
Motor Mounting Position All Angle
Ins. Class B
Item Direct Drive Blower Motor
Max. Ambient Temp. 40 Degrees C
Motor Sub Application Direct Drive Fan/Blower
Motor Service Factor 1
Motor Shaft Rotation CCWLE
Motor Enclosure Design Totally Enclosed Nonventilated
RPM Range 1,001-1,100
Capacitor Required Included
Motor Design Permanent Split Capacitor
Motor Thermal Protection Auto
Includes Resilient Base
Ring to Ring Center 8 7/8 in
Nameplate RPM 1,075
HP 3/4
Full Load Amps 7.3/3.7 A
Phase Single
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application HVAC/R
Motor Shaft Design Keyed
Standards CSA Certified
Mounting Stud Pattern 4-1/8 in x 4-1/8 in
Motor Bearings Ball
Duty Continuous
No. of Speeds 1
Hz 60 Hz
Usable @ 200V No
Usable @ 208V No
Number of Shafts 1
Stud Quantity 4
Duty Cycle Continuous
Weight 31 lb
Motor Frame Material Steel
Mounting Holes (4) #10-32
Mounting Cradle Base
Number of Speeds 1

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.3/3.7 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Cradle Base
