Shop CENTURY

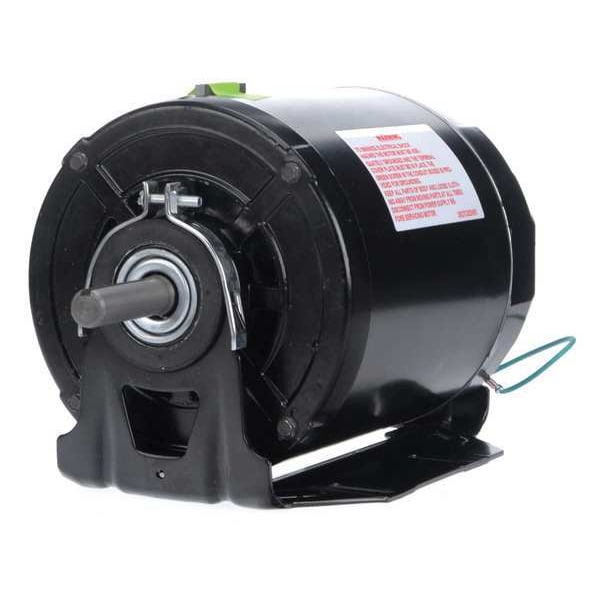

Mtr, Sp Ph, 1/2hp, 1725, 115/208-230, 56, TEAO

  • Mfr # ARB2054L4
  • Zoro # G1435637
product price:
$
349.99
/ea
Free Shipping & Returns

Key Features

Shaft Length
2 in
Application
Fan/Blower
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ARB2054L4
Zoro #
G1435637
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 in
Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Overall Length
10 13/16 in
Length Less Shaft
8 13/16 in
Resilient Ring Dia.
2 1/2 in
Manufacturers Warranty Length
1 yr
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
5/8 in
Frame Size
56
Body Diameter
6.5 in
Wire Rope Length
10 13/16 in
Length
10 13/16 in

Details

Application
Fan/Blower
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
No. of Speeds
1
HP
1/2
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Voltage
115V AC, 208V AC to 230V AC
Motor Bearings
Ball
Nameplate RPM
1,725
Motor Shaft Design
Keyed
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Item
Fan and Blower Motor
Motor Application
HVAC/R
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Mounting Type
Cradle Base
Motor Enclosure Design
Totally Enclosed Air-Over
Duty
Continuous
Full Load Amps
6.8/3.1/3.4 A
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Phase
Single
Motor Design
Split-Phase
Ring to Ring Center
8 5/16 in
Capacitor Required
Capacitor Not Required
Frame
56
Hz
60 Hz
Weight
23 lb
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Motor Frame Material
Steel
Includes
Resilient Base
Stud Quantity
4
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Mounting Holes
4
Number of Speeds
1
Mounting
Cradle Base
Sub Application
General Purpose
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Full Load Current @ 60 Hz
6.8/3.1/3.4 A
Frame Material
Steel
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Bearing Type
Ball
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Wattage
375 W

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 6.8/3.1/3.4 A Full Load Amps, 56 Frame, Output Watts 375 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
