Shop CENTURY

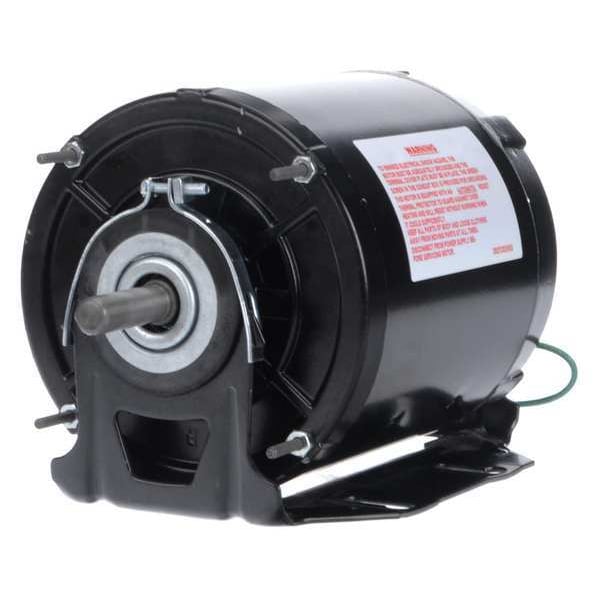

Motor, Sp Ph, 1/4 HP, 1725,115/208-230V, 48Y

  • Mfr # ARB2024L3

  • Zoro # G1495916

product price:
$
230.99
/ea
Free Shipping & Returns

Key Features

Shaft Length
1 1/2 in
Ring to Ring Center
7 1/2 in
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ARB2024L3
Zoro #
G1495916
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 1/2 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Overall Length
9 7/16 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 3/16 in
Length Less Shaft
7 13/16 in
Mounting Stud Length
7/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 3/16 in
Frame Size
48Y
Resilient Ring Diameter
2 1/2 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
9 7/16 in
Length
9 7/16 in

Details

Ring to Ring Center
7 1/2 in
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Cradle Base
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Nameplate RPM
1,725
Hz
60 Hz
No. of Speeds
1
Motor Enclosure Design
Totally Enclosed Air-Over
Ins. Class
B
Phase
Single
Mounting Stud Location
4/Shaft End
Frame
48Y
Motor Shaft Design
Flat
Application
Fan/Blower
Motor Mounting Position
Horizontal
Capacitor Required
Capacitor Not Required
Voltage
115/208-230V AC
Motor Design
Split-Phase
Motor Thermal Protection
Auto
Motor Service Factor
1
HP
1/4
Includes
Resilient Base
Full Load Amps
3.3/1.7/1.7 A
RPM Range
1,701-1,800
Item
Fan and Blower Motor
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Stud Quantity
4
Weight
16 lb
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Mounting Holes
4
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Number of Speeds
1
Mounting
Cradle Base
Sub Application
General Purpose
Wattage
390 W
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
3.3/1.7/1.7 A
Drive Type
Direct Drive
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Shaft Design
Flat
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 3.3/1.7/1.7 A Full Load Amps, 48Y Frame, Output Watts 390 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
