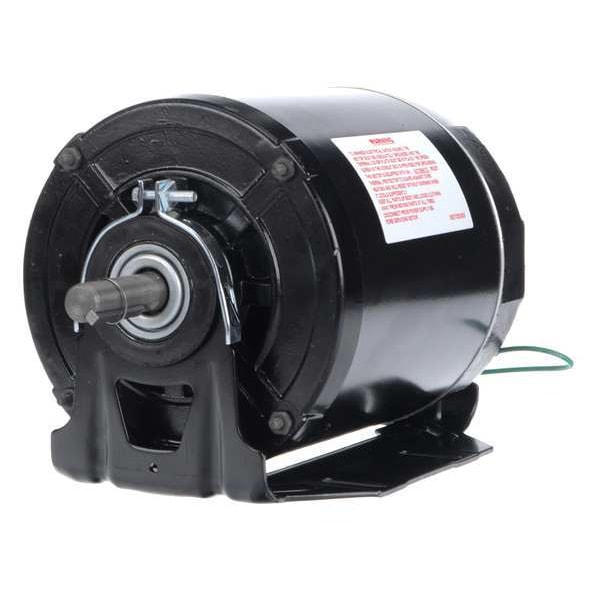

Mtr, Sp Ph, 1/2hp, 1725, 115/208-230, 56, TEAO

  • Mfr # ARB2054L3
  • Zoro # G3350374
product price:
$
284.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Shaft Dia.
5/8 in
Motor Design
Split-Phase
Body Dia.
6 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ARB2054L3
Zoro #
G3350374
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Shaft Length
2 in
Mounting Stud Length
1/2 in
Stud Size
#10-32
Overall Length
10 13/16 in
Bolt Circle Dia.
5 13/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 13/16 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
5 13/16 in
Wire Rope Length
10 13/16 in
Length
10 13/16 in

Details

Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Design
Split-Phase
Motor Service Factor
1.3
Motor Shaft Rotation
CW/CCW
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Hz
50/60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Full Load Amps
6.8/3.1/3.4 A
Frame
56
Capacitor Required
Capacitor Not Required
Voltage
115V AC, 208V AC to 230V AC
Nameplate RPM
1,725
Application
Fan/Blower
Ins. Class
B
Motor Mounting Type
Cradle Base
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Mounting Stud Location
4/Shaft End
Duty
Continuous
HP
1/2
Motor Application
HVAC/R
Includes
Resilient Base
Motor Enclosure Design
Totally Enclosed Air-Over
Item
Fan and Blower Motor
Motor Bearings
Ball
RPM Range
1,701-1,800
Phase
Single
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Mounting Holes
4
Usable @ 208V
Usable at 208V
Stud Quantity
4
Number of Shafts
1
Full Load Amps @ 50Hz
6.8/3.4-3.1 A
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
24 lb
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,425 RPM
Number of Speeds
1
Mounting
Cradle Base
Nameplate RPM @ 50 Hz
1,425 RPM
Full Load Current @ 60 Hz
6.8/3.1/3.4 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.3
Motor Enclosure Type
Totally Enclosed Air-Over
Frequency
60/50 Hz
Sub Application
General Purpose
Shaft Design
Keyed
Wattage
375 W
Manufacturers Warranty
1 yr
Drive Type
Direct Drive
Bearing Type
Ball
Full Load Current @ 50 Hz
6.8/3.4-3.1 A
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 6.8/3.1/3.4 A Full Load Amps, 56 Frame, Output Watts 375 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
