Shop CENTURY

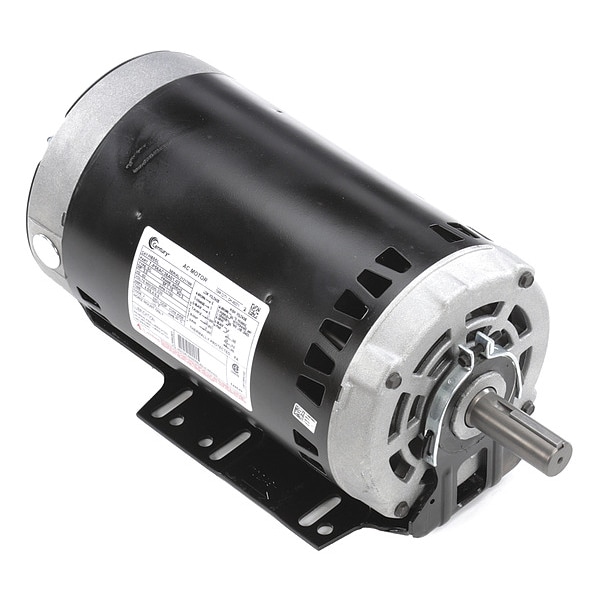

OEM Replacement Motor, 3 hp

  • Mfr # H855L

  • Zoro # G0793147

product price:  $571.99
/ea
Free Shipping & Returns

Key Features

Frame
R56HZ
HP
3 HP
Motor Application
OEM Replacement
Motor Design
Polyphase, Induction Type, Single Or Dual Voltage
Motor Enclosure Design
Open Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H855L
Zoro #
G0793147
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8"
Shaft Length
2.31"
Length Less Shaft
12 1/4 in
Body Dia.
6-1/2"
Manufacturers Warranty Length
1 yr
Overall Length
14.56"
Wire Rope Length
14 9/16 in
Frame Size
56HZ
Shaft Diameter
7/8 in

Details

Frame
R56HZ
HP
3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Polyphase, Induction Type, Single Or Dual Voltage
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cushion Base
Motor Shaft Rotation
Reversible Counterclockwise
Motor Sub Application
Fan and Blower HVAC/R Motor
Motor Thermal Protection
Manual
Nameplate RPM
1750 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
3
RPM Range
1,701-1,800
Voltage
460/200-230V
Motor Bearings
Ball
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
4.5/9.4-8.9A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.15
Application
Fan and Blower
Voltage Compatibility
460/200-230V AC
Duty Cycle
Continuous
Motor Frame Material
Rolled Steel
Nominal Efficiency
78.5 %
Usable @ 208V
Usable at 208V
Usable @ 200V
Usable at 200V
Weight
44 lb
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Shaft Design
Keyed
Compatible Brand
Century
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
4.5/9.4-8.9 A
Bearing Type
Ball
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Capacitor Required
Capacitor Not Included
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.5/9.4-8.9 A, 56HZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
