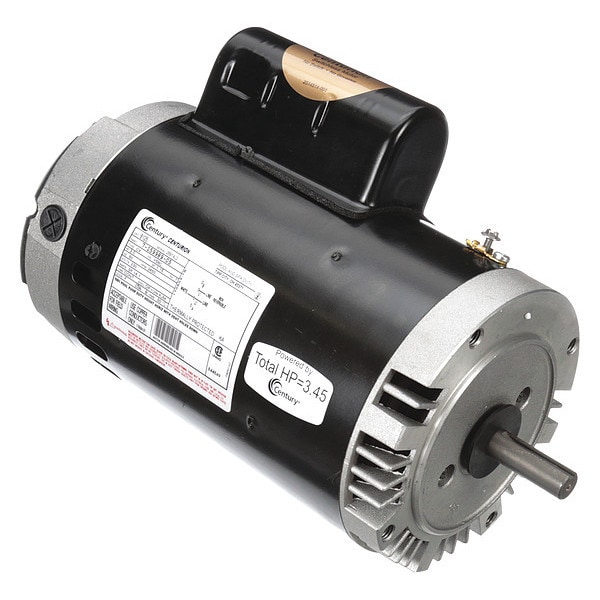

Pool Pump Motor, Permanent Split Capacitor, 3 HP, 56C Frame, 3,450 Nameplate RPM
Mfr # B125
Zoro # G4483236
product price:Â $668.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.15
RPM Range
3,001-3,600
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
B125
Zoro #
G4483236
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/8 in
Shaft Dia.
5/8 in
Length Less Shaft
11 9/16 in
Overall Length
13 5/8 in
Bolt Circle Dia.
5 13/16 in
Body Dia.
6.6 in
Height
11 in
Shaft Dia. (In.)
5/8
Body Diameter
6.6 in
Frame Size
56C
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 13/16 in
Description
Pool and Spa Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 13/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56C, Hz 60 Hz, Full Load Amps 14.1, Height 11 in, HP 3, Ins. Class B, Length Less Shaft 11 9/16 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 14.1, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Restrictions
This item has been restricted from sale in the following states:
CA, NY
