Shop CENTURY

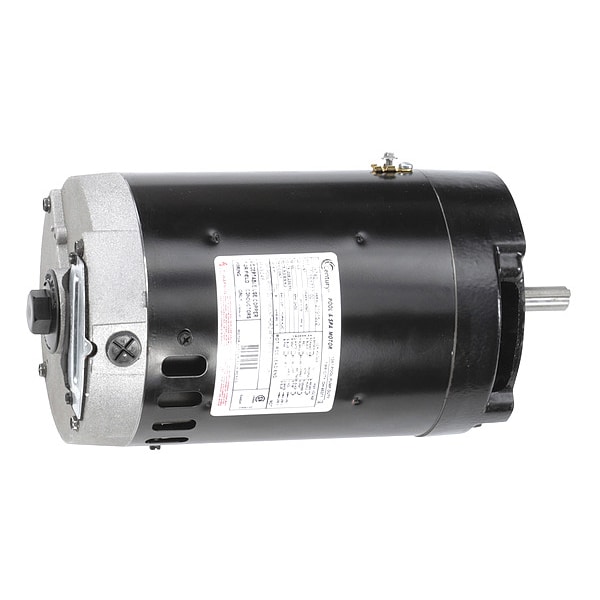

Pool Pump Motor, 3-Phase, 3 HP, 56C Frame, 3,450 Nameplate RPM

  • Mfr # H740

  • Zoro # G0787967

product price:
$
775.99
/ea
Sold in multiples of 30 for $23,279.70
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.15
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H740
Zoro #
G0787967
UPC #
-
Country of Origin
Mexico
Item
Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.15
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56C
Motor Shaft Rotation
CW/CCW
Phase
Three
Voltage
208-230/460V AC
Motor Mounting Type
Face
Full Load Amps
2.00-1.80/1.00 A
Ins. Class
B
Shaft Material
Stainless Steel
Standards
CSA, UL
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Motor Application
Pump
Motor Sub Application
Pool and Spa Pump
Motor Bearings
Ball
Hz
60/50
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Weight
37 lb
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Shaft Design
Keyed
Frame Material
Steel
Product Type
Pump Motor
Number of Speeds
1
Mounting Position
Horizontal
Sub Application
Pool and Spa Pump
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Number of Wires
9
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
1.8-2.0/1.0 A
Application
Pump
Shaft Design
Keyed

Description

Pool Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 5 15/16 in, Duty Cycle Continuous, Frame 56C, Hz 60/50, Full Load Amps 2.00-1.80/1.00, Height 6 1/2 in, HP 3, Ins. Class B, Length Less Shaft 11 1/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
