Shop CENTURY

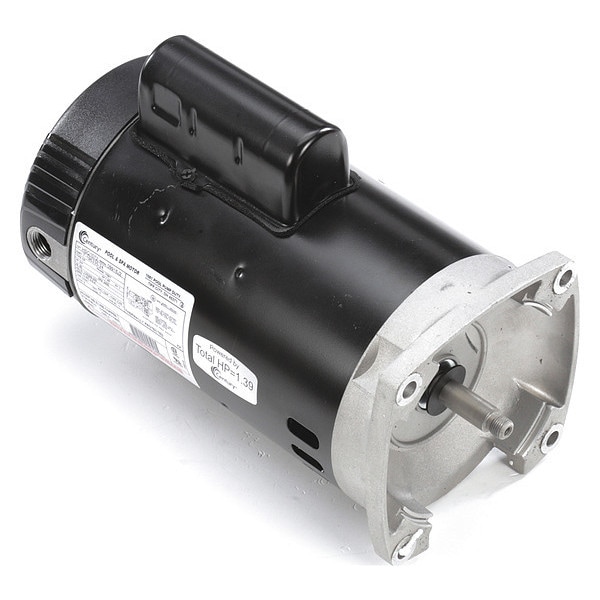

Pool Pump Motor, Capacitor-Start/Run, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # HSQ1072

  • Zoro # G4482886

product price:
$
448.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.85
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSQ1072
Zoro #
G4482886
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.85
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Voltage
115/208-230V AC
Phase
Single
Full Load Amps
11.6/7.0-5.8 A
Motor Mounting Type
Face
Motor Efficiency Group
Energy Efficient
Shaft Material
Stainless Steel
Motor Sub Application
Pool and Spa Pump
Hz
60 Hz
Ambient Temperature
60 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Flange Material
Aluminum
Motor Bearings
Ball
Shaft
Threaded 1/2-20 UNF-2A RH
Standards
CSA, UL
Motor Thermal Protection
Auto
Motor Application
Pump
Ins. Class
F
Finish
Black
Max. Ambient Temp.
60 Degrees C
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
No. of Speeds
1
Duty Cycle
Continuous
Weight
31 lb
Replacement For
Mfr. No. SP3207Z1BE
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Conduit Box Position
F3
Application
Pump
Ambient Temperature - Maximum
60 Degrees C
Product Type
Pump Motor
Mounting Position
Horizontal
Insulation Class
F
Frequency
60 Hz
Frame Material
Steel
Sub Application
Pool and Spa Pump
Motor Enclosure Type
Open Drip Proof
Number of Wires
11
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.85
Full Load Current @ 60 Hz
11.6/7.0-5.8 A
Shaft Design
Threaded
Number of Speeds
1

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 5 11/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 11.6/7.0-5.8, Height 6 1/2 in, HP 3/4, Ins. Class F, Length Less Shaft 12 1/4 in, Max. Ambient Temp. 60 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
