Century

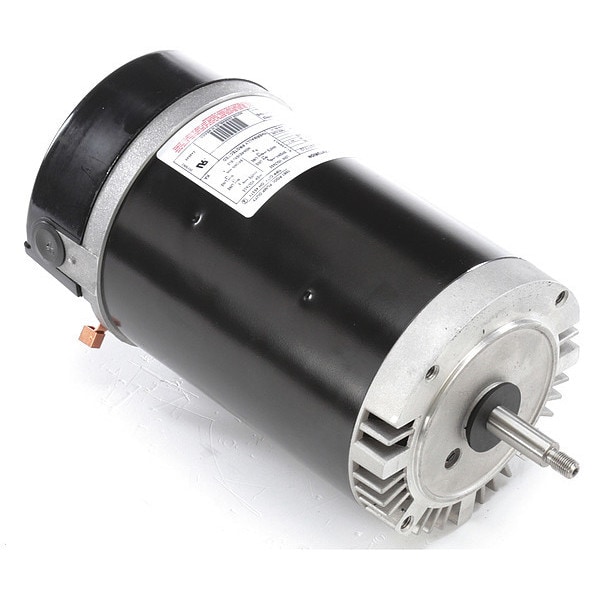

Pool Pump Motor, Capacitor-Start, 1 1/2 HP, 56J Frame, 3,450 Nameplate RPM

Century Pool Pump Motor,  Capacitor-Start,  1 1/2 HP,  56J Frame,  3,450 Nameplate RPM SN1152
Hover or click to zoom Tap to zoom
  • Item: Pool Pump Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1 1/2
  • Motor Service Factor: 1.6
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56J
See full product details
$455.52

Subtotal: $455.52

Century #SN1152 Specifications

  • Item: Pool Pump Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1 1/2
  • Motor Service Factor: 1.6
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56J
  • Motor Shaft Rotation: CCWSE
  • Voltage: 115/208-230V AC
  • Phase: Single
  • Full Load Amps: 20.4/11.0-10.0
  • Motor Mounting Type: Face
  • Ins. Class: B
  • Shaft: Threaded 7/16-20 UNF-2A RH
  • Motor Application: Pump
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Motor Thermal Protection: Auto
  • Shaft Length: 2 9/16 in
  • Standards: CSA, UL
  • Ambient Temperature: 50 Degrees C
  • Hz: 60
  • Shaft Material: Stainless Steel
  • Motor Sub Application: Pool and Spa Pump
  • Finish: Black
  • Motor Efficiency Group: Energy Efficient
  • Shaft Dia.: 5/8 in
  • Motor Flange Material: Aluminum
  • Motor Bearings: Ball
  • Max. Ambient Temp.: 50 Degrees C
  • Bolt Circle Dia.: 5 13/16 in
  • Motor Mounting Position: Horizontal
  • Usable @ 208V: Yes
  • Overall Length: 13 7/8 in
  • Motor Frame Material: Steel
  • No. of Speeds: 1
  • Usable @ 200V: No
  • Motor Shaft Design: Threaded
  • Duty Cycle: Continuous
  • Height: 6 7/16 in
  • Weight: 34 lb
  • Length Less Shaft: 11 5/16 in
  • Application: Pool/Spa Motor
  • Country of Origin (subject to change): Mexico

Description

Pool Pump Motor, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Phase Single, Standards CSA, UL
