Shop CENTURY

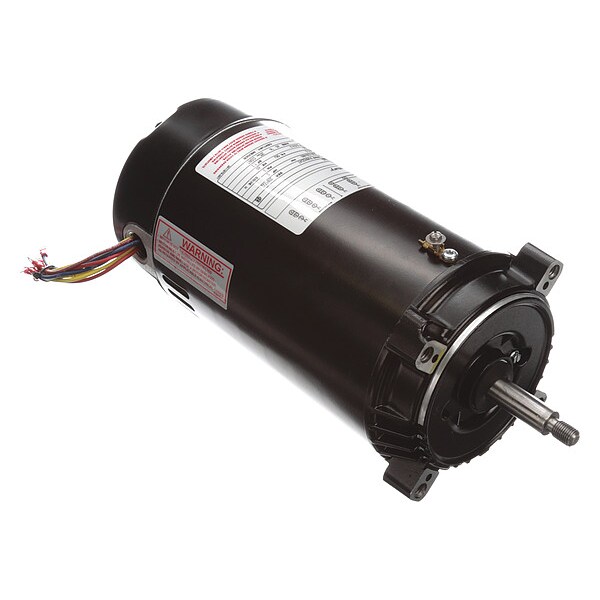

Pool Pump Motor, 3-Phase, 2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # T3202
  • Zoro # G0787860
product price:
$
578.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
2
Motor Service Factor
1.2
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T3202
Zoro #
G0787860
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/2 in
Shaft Dia.
5/8 in
Overall Length
13 7/8 in
Body Dia.
5.6 in
Bolt Circle Dia.
3/8 in
Length Less Shaft
11 5/16 in
Manufacturers Warranty Length
2 yr
Height
5 5/8 in
Bolt Circle Diameter
3/8 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
5.6 in
Wire Rope Length
13 7/8 in
Length
13 7/8 in

Details

Item
Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
2
Motor Service Factor
1.2
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCW
Phase
Three
Voltage
208-230/460V AC
Full Load Amps
6.6/3.3 A
Motor Mounting Type
Face
Motor Bearings
Ball
Motor Application
Pool and Spa Pump
Voltage Compatibility
208V AC, 230V AC, 460V AC
Shaft Material
Stainless Steel
Hz
60 Hz
Motor Thermal Protection
None
Standards
CSA
Motor Sub Application
Jet Pump
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Weight
27 lb
Usable @ 200V
Usable at 200V
Motor Shaft Design
Threaded
No. of Speeds
1
Conduit Box Location
Interior
Motor Frame Material
Rolled Steel
Regreasable Bearings
Permanently Lubricated Bearings
Number of Wires
9
Inverter Rated
Not Inverter Rated
Max. SF Amps
8.60/4.30 A
Number of Speeds
1
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Mounting Position
Horizontal
Service Factor Current
8.60/4.30 A
Sub Application
Jet Pump
Shaft Design
Threaded
Manufacturers Warranty
2 yr
Bearing Lubrication Type
Permanently Lubricated Bearings
Nameplate Service Factor @ 60 Hz
1.2
Bearing Type
Ball
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
6.6/3.3 A
Product Type
Pump Motor
Frame Material
Steel

Description

Pool Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 3/8 in, Conduit Box Location Interior, Conduit Box Position Not Applicable, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 6.6/3.3 A, Full Load Amps @ 50Hz Not Applicable, Height 5 5/8 in, HP 2, HP @ 50Hz Not Applicable, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 11 5/16 in, Manufacturers Warranty Length 2 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 8.60/4.30 A
