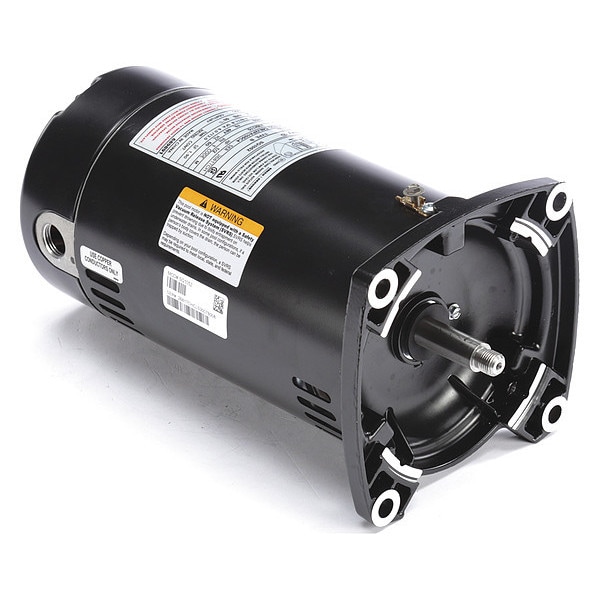

Pool Pump Motor, Capacitor-Start/Run, 1/2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # SQ1052

  • Zoro # G2749074

product price:  $238.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SQ1052
Zoro #
G2749074
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Height
5 5/8 in
Body Dia.
5.6 in
Length Less Shaft
11 5/16 in
Overall Length
12 3/16 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
5/8 in

Details

Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/230V AC
Motor Mounting Type
Face
Full Load Amps
6.7/13.4
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Efficiency Group
Standard Efficient
Motor Bearings
Ball
Motor Thermal Protection
Auto
Finish
Black
Motor Application
Pump
Design
Two Compartment
Ins. Class
B
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Max. Ambient Temp.
50 Degrees C
Hz
60 Hz
Shaft Material
Stainless Steel
Motor Sub Application
Pool and Spa Pump
Standards
CSA, UL
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
19 lb
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Warranty
2ACC7
Ambient Temperature - Maximum
50 Degrees C
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.9
Product Type
Pump Motor
Insulation Class
B
Frequency
60 Hz
Number of Wires
9
Motor Enclosure Type
Open Drip Proof
Sub Application
Pool and Spa Pump
Frame Material
Steel
Full Load Current @ 60 Hz
6.7/13.4 A
Shaft Design
Threaded
Bearing Type
Ball
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
Horizontal

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 6.7/13.4, Height 5 5/8 in, HP 1/2, Ins. Class B, Length Less Shaft 11 5/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
