Shop CENTURY

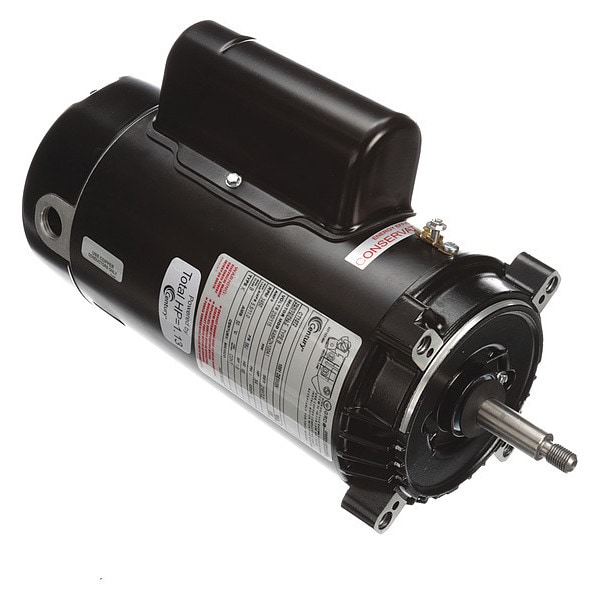

Pool Pump Motor, Capacitor-Start/Run, 3/4 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # CT1072
  • Zoro # G1424841
product price:
$
374.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CT1072
Zoro #
G1424841
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/230V AC
Motor Mounting Type
Face
Full Load Amps
5.5/11.0 A
Finish
Black
Shaft Material
303 Stainless Steel
Motor Sub Application
Pool and Spa Pump
Motor Efficiency Group
Energy Efficient
Ambient Temperature
50 Degrees C
Standards
CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
Pump
Motor Flange Material
Aluminum
Ins. Class
B
Motor Thermal Protection
Auto
Motor Bearings
Ball
Hz
60 Hz
Shaft
Threaded 7/16"-20 UNF-2A RH 11/16 in From End
Max. Ambient Temp.
50 Degrees C
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
No. of Speeds
1
Weight
25 lb
Warranty
2ACC8
Number of Wires
11
Ambient Temperature - Maximum
50 Degrees C
Frequency
60 Hz
Application
Pump
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Sub Application
Pool and Spa Pump
Product Type
Pump Motor
Full Load Current @ 60 Hz
5.5/11.0 A
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.5
Insulation Class
B
Number of Speeds
1
Shaft Design
Threaded
Mounting Position
Horizontal

Description

Pool and Spa Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 5.5/11.0, HP 3/4, Ins. Class B, Length Less Shaft 12 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
