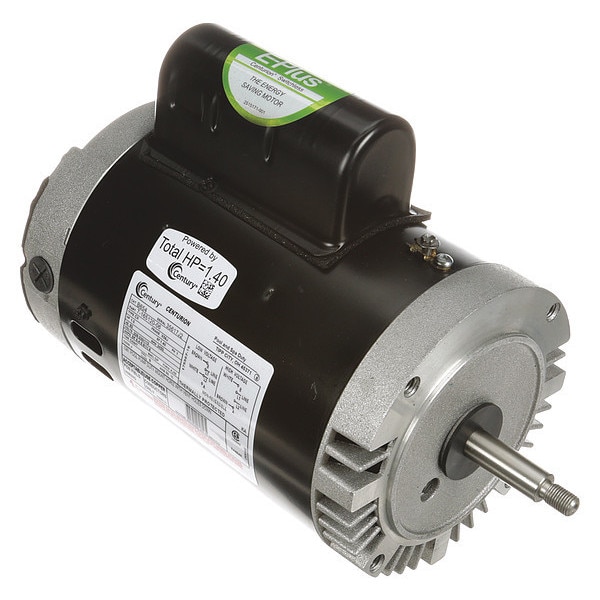

Pool Pump Motor, Permanent Split Capacitor, 1 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # B654

  • Zoro # G3128736

product price:  $440.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B654
Zoro #
G3128736
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/2 in
Length Less Shaft
10 5/8 in
Height
11 in
Overall Length
13 3/16 in
Body Dia.
6.5 in
Shaft Dia. (In.)
5/8
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56J

Details

Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.4
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Voltage
115/208-230V AC
Phase
Single
Motor Mounting Type
Face
Full Load Amps
6.4-5.9/11.8 A
Hz
60 Hz
Motor Application
Pump
Motor Bearings
Ball
Standards
CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Motor Sub Application
Pool and Spa Pump
Finish
Black
Shaft
Threaded 7/16"-20 UNF-2A RH 11/16 in From End
Shaft Material
303 Stainless Steel
Ambient Temperature
50 Degrees C
Motor Flange Material
Aluminum
Motor Efficiency Group
Energy Efficient
Motor Thermal Protection
Auto
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Max. SF Amps
11.8
Usable @ 208V
Usable at 208V
Motor Shaft Design
Threaded
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
32 lb
No. of Speeds
1
Full Load Current @ 60 Hz
6.4-5.9/11.8 A
Shaft Design
Threaded
Frequency
60 Hz
Sub Application
Pool and Spa Pump
Ambient Temperature - Maximum
50 Degrees C
Frame Material
Steel
Bearing Type
Ball
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.4
Number of Wires
8
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Service Factor Current
11.8 A
Application
Pump
Product Type
Pump Motor

Description

Pool and Spa Pump Motor, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 6.4-5.9/11.8, Height 11 in, HP 1, Ins. Class B, Length Less Shaft 10 5/8 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 11.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
