Shop CENTURY

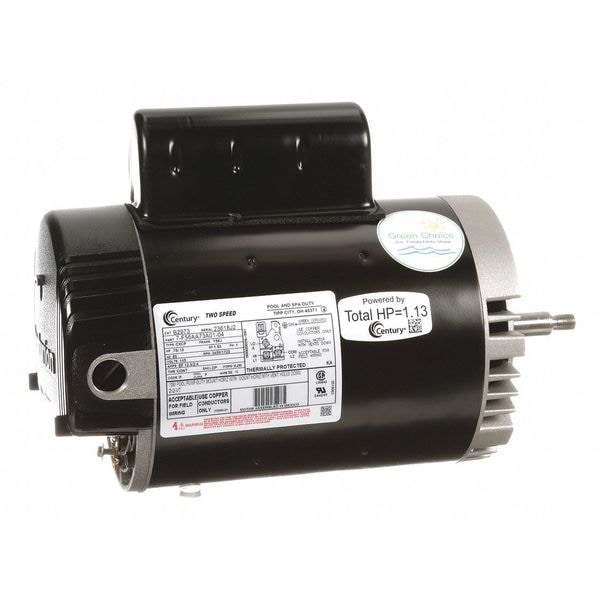

Pool Pump Motor, Permanent Split Capacitor, 1/10, 3/4 HP, 56J Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B2973

  • Zoro # G8651253

product price:
$
492.99
/ea
Sold in multiples of 30 for $14,789.70
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B2973
Zoro #
G8651253
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
Nameplate RPM
3,450/1,725
Frame
56J
Motor Shaft Rotation
CCWSE
Voltage
115V AC
Phase
Single
Full Load Amps
12.4/2.4 A
Motor Mounting Type
Face
Motor Sub Application
Pool and Spa Pump
Motor Flange Material
Aluminum
Motor Thermal Protection
Auto
Max. Ambient Temp.
50 Degrees C
Motor Bearings
Ball
Standards
CSA (LR4642), UL (E44549)
Finish
Unfinished
Motor Application
Pump
Ambient Temperature
50 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
F
Shaft
Threaded
Shaft Material
303 Stainless Steel
Hz
60 Hz
Max. SF Amps
12.4
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
28 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
No. of Speeds
2
Conduit Box Position
F3
Frequency
60 Hz
Frame Material
Steel
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.5
Motor Enclosure Type
Open Drip Proof
Application
Pump
Mounting Position
Horizontal
Ambient Temperature - Maximum
50 Degrees C
Shaft Design
Threaded
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Sub Application
Pool and Spa Pump
Number of Wires
14
Number of Speeds
2
Insulation Class
F
Frame Finish
Unfinished
Full Load Current @ 60 Hz
12.4/2.4 A
Service Factor Current
12.4 A

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 5 15/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Unfinished, Frame 56J, Hz 60 Hz, Full Load Amps 12.4/2.4, Height 11 in, HP 1/10, 3/4, Ins. Class F, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 12.4, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
