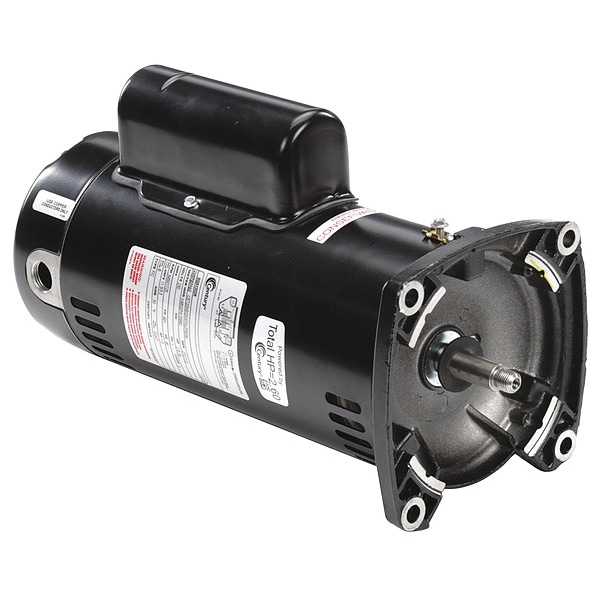

Pool Pump Motor, Permanent Split Capacitor, 1/3, 2 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # SQS1202R

  • Zoro # G2813587

product price:  $782.99
/ea
Sold in multiples of 30 for $23,489.70
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/3, 2
Motor Service Factor
1.3
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SQS1202R
Zoro #
G2813587
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Length Less Shaft
13 5/8 in
Overall Length
14 1/2 in
Body Dia.
5.6 in
Height
5 5/8 in
Shaft Dia. (In.)
5/8
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Frame Size
48Y

Details

Item
Square Flange Pool Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/3, 2
Motor Service Factor
1.3
RPM Range
3,001-3,600
Nameplate RPM
3,450/1,725
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Full Load Amps
11.3/3.3 A
Motor Mounting Type
Face
Ins. Class
B
Motor Efficiency Group
Energy Efficient
Shaft Material
Stainless Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Thermal Protection
Auto
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Max. Ambient Temp.
50 Degrees C
Motor Sub Application
Pool and Spa Pump
Hz
60 Hz
Motor Application
Pump
Design
Two Compartment
Motor Bearings
Ball
Standards
California Energy Commission Appliance Regulations 2008, UL 1081
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
Duty Cycle
Continuous
Weight
43 lb
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
No. of Speeds
2
Shaft Design
Threaded
Number of Wires
9
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Pool and Spa Pump
Nameplate Service Factor @ 60 Hz
1.3
Full Load Current @ 60 Hz
11.3/3.3 A
Motor Enclosure Type
Open Drip Proof
Number of Speeds
2
Frame Material
Steel
Frequency
60 Hz
Mounting Position
Horizontal
Product Type
Pump Motor
Application
Pump
Insulation Class
B
Bearing Type
Ball

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 11.3/3.3, Height 5 5/8 in, HP 1/3, 2, Ins. Class B, Length Less Shaft 13 5/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
