  11. Pool Pump Motor, Permanent Split Capacitor, 2 1/2 HP, 56Y Frame, 3,450 Nameplate RPM
Shop All Pool Pump Motors
Century

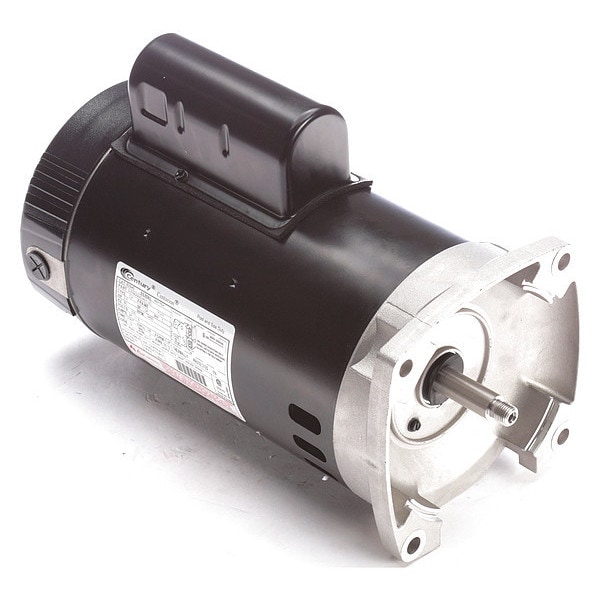

Pool Pump Motor, Permanent Split Capacitor, 2 1/2 HP, 56Y Frame, 3,450 Nameplate RPM

original price: $464.50
7% off
new price: $428.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • Motor Enclosure Design Open Dripproof
  • HP 2 1/2
  • RPM Range 3,001-3,600
  • Motor Service Factor 1.04
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 1 in
Bolt Circle Dia. 7 1/16 in
Overall Length 13 3/8 in
Length Less Shaft 12 1/2 in
Height 9 in
Shaft Dia. (In.) 5/8

Details

Item Pool Pump Motor
Motor Design Permanent Split Capacitor
Motor Enclosure Design Open Dripproof
HP 2 1/2
RPM Range 3,001-3,600
Motor Service Factor 1.04
Nameplate RPM 3,450
Frame 56Y
Motor Shaft Rotation CCWSE
Phase Single
Voltage 230V AC
Motor Mounting Type Face
Full Load Amps 10.0/3.5
Motor Flange Material Aluminum
Motor Bearings Ball
Standards CSA, UL
Motor Application Pump
Finish Black
Motor Efficiency Group Standard Efficient
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Hz 60 Hz
Motor Thermal Protection Auto
Motor Sub Application Pool and Spa Pump
Shaft Threaded 1/2-20 UNF-2A RH
Ins. Class F
Shaft Material Stainless Steel
Ambient Temperature 50 Degrees C
Max. Ambient Temp. 50 Degrees C
No. of Speeds 1
Usable @ 208V No
Motor Shaft Design Threaded
Usable @ 200V No
Max. SF Amps 11.5
Motor Mounting Position Horizontal
Weight 31 lb
Duty Cycle Continuous
Motor Frame Material Steel
Conduit Box Position F3
Application Pool/Spa Motor

Description

Pool Pump Motor, Bolt Circle Dia. 7 1/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 10.0/3.5, Height 9 in, HP 2 1/2, Ins. Class F, Length Less Shaft 12 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 11.5, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

  • This item has been restricted from sale in the following states: CA, NY
