Shop U.S. MOTORS

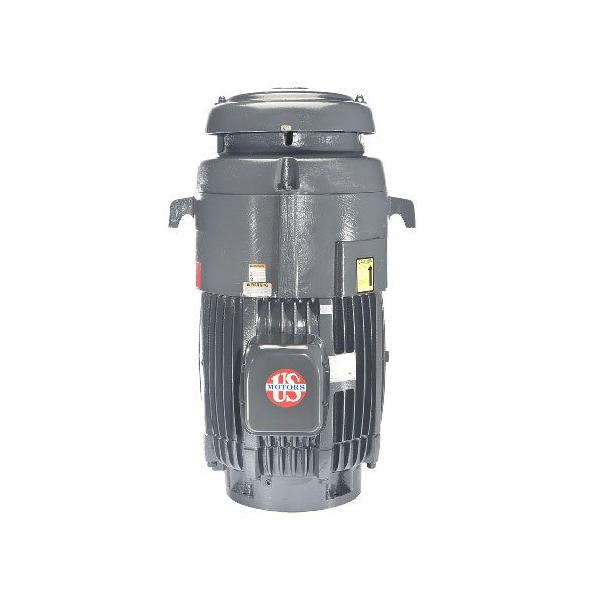

Pool and Spa Pump Motor, 3-Phase, 75 HP, 365TP Frame, 1,785 Nameplate RPM

  • Mfr # HT75P2CLG

  • Zoro # G7731778

product price:  $12,833.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
75
RPM Range
1,701-1,800
Motor Service Factor
1.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HT75P2CLG
Zoro #
G7731778
UPC #
786382114954
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
14 3/4 in
Body Dia.
18.8 in
Overall Length
14 11/16 in
Length Less Shaft
14 11/16 in
Body Diameter
18.8 in
Frame Size
365TP
Bolt Circle Diameter
14 3/4 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
75
RPM Range
1,701-1,800
Motor Service Factor
1.15
Nameplate RPM
1,785
Frame
365TP
Phase
Three
Voltage
460V AC
Full Load Amps
85 A
NEMA Design
B
Inverter Rating
20:1 (VT), 4:1 (CT)
Motor Mounting Position
Vertical
Max. Ambient Temp.
40 Degrees C
Thrust Rating
5,600 lb
Standards
CSA Certified, ENERGY cURus
Ins. Class
F
Motor Thermal Protection
None
No. of Speeds
1
Duty Cycle
Continuous
Hz
60 Hz
Weight
925 lb
Inverter Rated
Inverter Rated
Max. SF Amps
98 A
Voltage Compatibility
230V
Nominal Efficiency
95.4 %
Motor Application
Pump
Number of Wires
3
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
85.0 A
Frequency
60 Hz
Includes Low Temperature Monitor
Low Temperature Monitor Not Included
Application
Pump
Motor Enclosure Type
Totally Enclosed Fan Cooled
Service Factor Current
98.0 A
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Product Type
Pump Motor
Efficiency Rating
Premium Efficiency (IE3)
Number of Speeds
1
Bearing Type
Ball
Constant Torque Rating
4:1 (CT)
Insulation Class
F

Description

Pool and Spa Pump Motor, Body Dia. 18.8 in, Bolt Circle Dia. 14 3/4 in, Duty Cycle Continuous, Frame 365TP, Hz 60 Hz, Full Load Amps 85.0, HP 75, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 14 11/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 98.0, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
