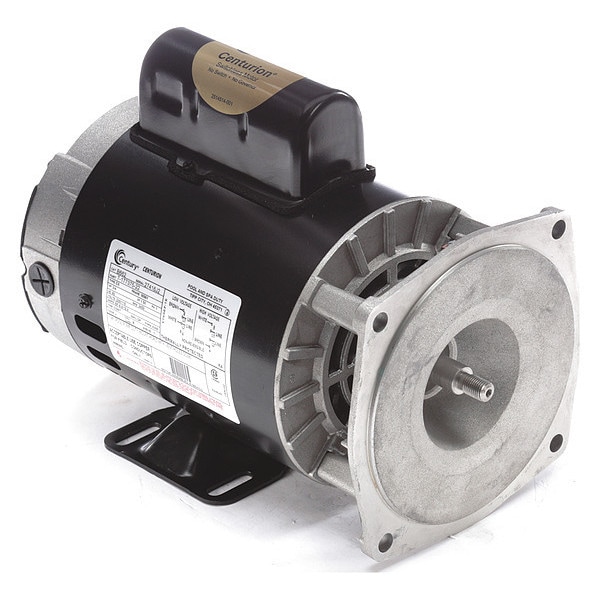

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

Zoro #: G4482764
Mfr #: B662

Century Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM B662

Tap to zoom

Hover or click to zoom

$340.00

Must order in multiples of 50

Item: Pool Pump Motor
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Dripproof

This item ships free.

Quantity

Total: $17,000.00

Century #B662 Specifications

Zoro #: G4482764
Mfr #: B662

Item: Pool Pump Motor
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Dripproof
HP: 3/4
Motor Service Factor: 1.5
RPM Range: 3,001-3,600
Nameplate RPM: 3,450
Frame: 56Y
Motor Shaft Rotation: CCWSE
Voltage: 115/230V AC
Phase: Single
Motor Mounting Type: Rigid Base
Full Load Amps: 12.0/6.0
Motor Flange Material: Aluminum
Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings: Ball
Shaft Length: 1 15/16 in
Shaft: Threaded 7/16-20 UNF-2A RH
Shaft Material: 303 Stainless Steel
Motor Sub Application: Pool and Spa Pump
Ambient Temperature: 40 Degrees C
Shaft Dia.: 5/8 in
Motor Thermal Protection: Auto
Standards: CSA, UL
Motor Efficiency Group: Standard Efficient
Ins. Class: B
Motor Application: Pump
Finish: Black
Hz: 60
Max. Ambient Temp.: 40 Degrees C
Usable @ 200V: No
Length Less Shaft: 9 13/16 in
Max. SF Amps: 12.0
No. of Speeds: 1
Motor Mounting Position: Horizontal
Duty Cycle: Continuous
Bolt Circle Dia.: 7 3/16 in
Usable @ 208V: No
Motor Shaft Design: Threaded
Overall Length: 11 3/4 in
Height: 10 3/4 in
Motor Frame Material: Steel
Weight: 22 lb
Conduit Box Position: F3
Application: Pool/Spa Motor
Country of Origin (subject to change): Mexico
