  11. Room Air Cond Mtr, PSC, OAO, 1625 RPM
Shop All Room Air Conditioner Motors
Century

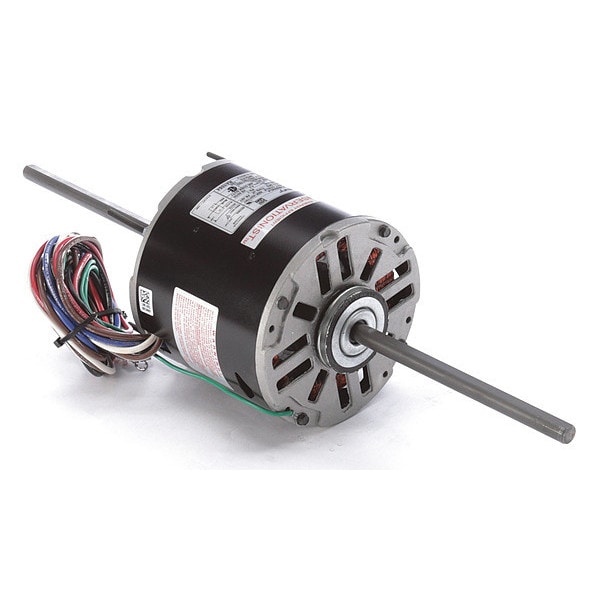

Room Air Cond Mtr, PSC, OAO, 1625 RPM

Hover or click to zoom Tap to zoom
Key Features
  • Motor Design: Permanent Split Capacitor
  • HP: 1/2
  • RPM Range: 1,601-1,700
  • No. of Speeds: 3
  • Voltage: 208-230V AC
  • Motor Shaft Rotation: CCWLE
  • Frame: 48Y
  • Motor Enclosure Design: Open Air-Over
See full product details
$306.57
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Century #RA1054 Specifications

  • Motor Design: Permanent Split Capacitor
  • HP: 1/2
  • RPM Range: 1,601-1,700
  • No. of Speeds: 3
  • Voltage: 208-230V AC
  • Motor Shaft Rotation: CCWLE
  • Frame: 48Y
  • Motor Enclosure Design: Open Air-Over
  • Motor Mounting Type: Ring/Stud
  • Shaft Dia.: 1/2 in
  • Motor Application: HVAC/R
  • Motor Sub Application: Room Air Conditioner
  • Body Dia.: 5 5/8 in
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Stud Size: #8-32 x 1-5/8 in
  • Phase: Single
  • Motor Service Factor: 1
  • Lead Length: 35 in
  • Length Less Shaft: 5 5/8 in
  • Capacitor Required: 2MDV4
  • Resilient Ring Dia.: 2 1/4 in
  • Max. Ambient Temp.: 40 Degrees C
  • Nameplate RPM: 1,625
  • Motor Thermal Protection: Auto
  • Item: Room Air Conditioner Motor
  • Bolt Circle Dia.: 5 1/8 in
  • Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
  • Full Load Amps: 3.0
  • Motor Bearings: Sleeve
  • Ins. Class: A
  • Shaft Length: 7 19/32 in
  • Duty: Continuous
  • Standards: CSA Certified, UL Recognized
  • Hz: 60 Hz
  • Number of Shafts: 2
  • Motor Shaft Design: Flat
  • Motor Mounting Position: Horizontal
  • Includes: Extended Studs, Permanent Split Capacitor, Resilient Rings
  • Mounting Holes: (4) #8-32
  • Usable @ 200V: No
  • Duty Cycle: Continuous
  • Usable @ 208V: Yes
  • Weight: 17 lb
  • Motor Frame Material: Steel
  • Overall Length: 20 in
  • Stud Quantity: 4
  • Application: Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower
  • Mounting: Stud
  • Number of Speeds: 3
  • Country of Origin (subject to change): Mexico

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,625, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 3.0, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 35 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud
