Shop CENTURY

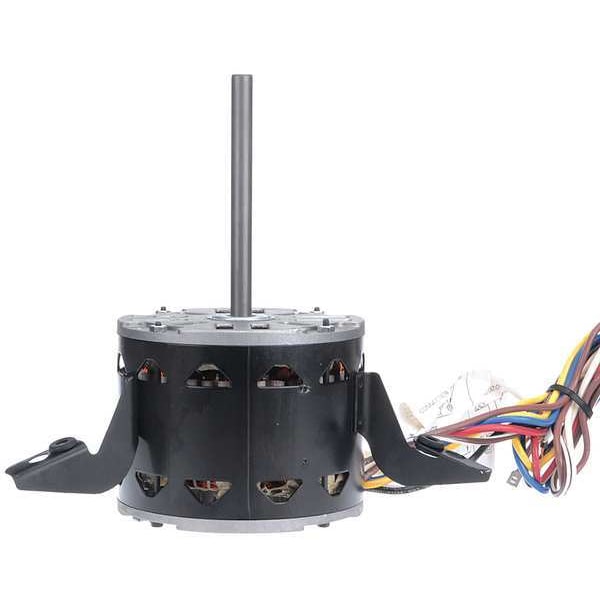

Direct Drive Blower Motor, 1/4 hp

  • Mfr # 752A
  • Zoro # G0275466
product price:
$
255.99
/ea
Free Shipping & Returns

Key Features

Motor Service Factor
1
Motor Sub Application
Direct Drive Fan/Blower
Manufacturers Warranty Length
1 yr
Nameplate RPM
1,075
Overall Length
9 7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
752A
Zoro #
G0275466
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Overall Length
9 7/8 in
Shaft Length
5 1/2 in
Body Dia.
5.7 in
Shaft Dia.
1/2 in
Length Less Shaft
4 3/8 in
Lead Length
25 in
Frame Size
48
Body Diameter
5.7 in
Shaft Diameter
1/2 in
Wire Rope Length
9 7/8 in
Length
9 7/8 in

Details

Motor Service Factor
1
Motor Sub Application
Direct Drive Fan/Blower
Nameplate RPM
1,075
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Max. Ambient Temp.
50 Degrees C
Motor Mounting Type
T-Flex
No. of Speeds
4
Phase
Single
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Application
Blowers, Fans and Air Circulators
Motor Enclosure Design
Open Air-Over
Motor Design
Permanent Split Capacitor
Ins. Class
B
Motor Application
OEM Replacement Motor
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Item
OEM Replacement Motor
Full Load Amps
1.6 A, 2.1 A, 2.8 A, 3.9 A
Motor Shaft Design
Flat
Includes
Reversing Plug
Voltage
115V AC
Capacitor Required
Capacitor Included
Duty
Continuous
RPM Range
1,001-1,100
Hz
60 Hz
HP
1/4
Frame
48
Motor Frame Material
Steel
Mounting Holes
4
Weight
14 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Stud Quantity
4
Number of Shafts
1
Mounting
Torsion Flex Bracket
Number of Speeds
4
Rotation
CW/CCW
Compatible Brand
Century
Shaft Design
Flat
Bearing Type
Ball
Insulation Class
B
Ambient Temperature - Maximum
50 Degrees C
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.6 A, 2.1 A, 2.8 A, 3.9 A
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Product Type
OEM Replacement Motor
Manufacturers Warranty
1 yr

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 1.6 A, 2.1 A, 2.8 A, 3.9 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex
