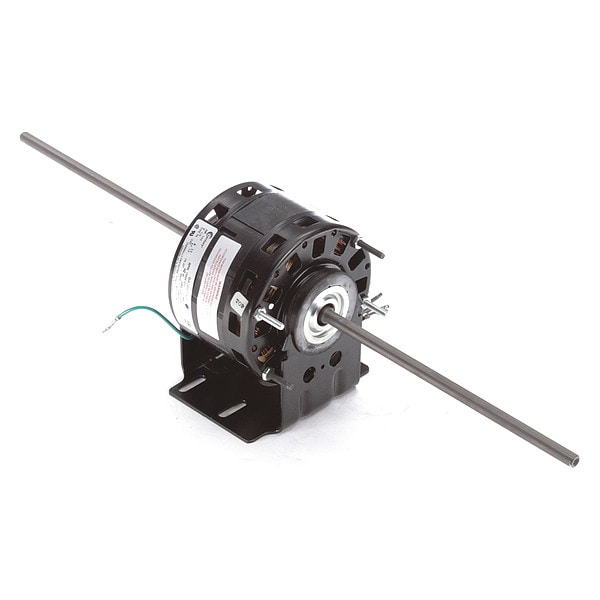

Century Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM DBL4411 - main

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

  • Mfr # DBL4411

  • Zoro # G2212874

product price:  $192.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
HP
1/10
RPM Range
1,501-1,600
No. of Speeds
4
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DBL4411
Zoro #
G2212874
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Body Dia.
5 in
Shaft Length
9 5/16 in
Bolt Circle Dia.
4 7/16 in
Stud Size
#10-32 x 13/16 in
Lead Length
38 1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
4 1/16 in
Overall Length
22 in

Details

Motor Design
Shaded Pole
HP
1/10
RPM Range
1,501-1,600
No. of Speeds
4
Voltage
115V AC
Motor Shaft Rotation
CCWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Ring, Extended Stud
Nameplate RPM
1,550 RPM
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Recognized
Ins. Class
A
Capacitor Required
No
Motor Bearings
Sleeve
Hz
60 Hz
Mounting Stud Pattern
2-1/4 in x 3-7/8 in
Ring to Ring Center
4 1/16 in
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
3.1 A
Item
Room Air Conditioner Motor
Motor Sub Application
Fan Coil, Room Air Conditioner Motor
Phase
1
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Service Factor
1
Number of Shafts
2
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Usable @ 208V
No
Usable @ 200V
No
Weight
11 lb
Number of Speeds
4
Application
Room Air Conditioners, evaporative cooloers, remote fan coils, and other shaft mounted fan and blower applications
Mounting
Cradle Base

Description

Room Air Conditioner Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 4, Voltage 115V AC, 3.1 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
