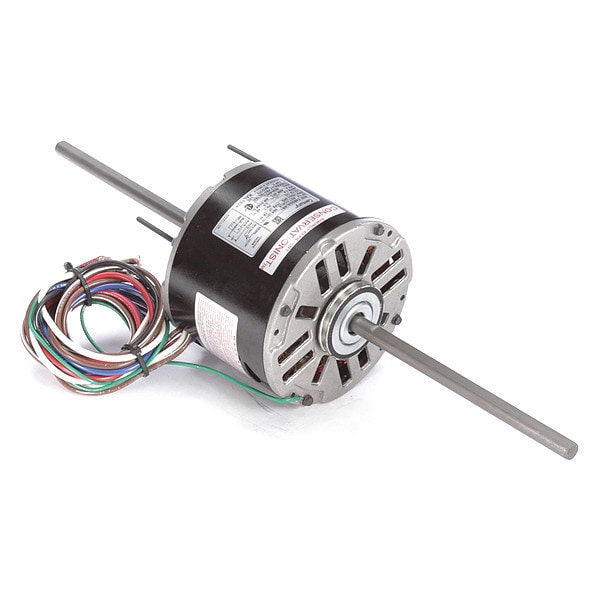

Room Air Cond Mtr, PSC, OAO, 1625 RPM

CENTURY| Zoro #: G0370072| Mfr #: RAL1024

$170.11 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0370072 Mfr #: RAL1024
Motor Service Factor: 1.00Motor Shaft Rotation: CCWLE
Motor Bearings: SleevePhase: 1
Motor Sub Application: Room Air ConditionerMotor Application: HVAC/R
Motor Enclosure Design: Open Air-OverItem: Room Air Conditioner Motor
HP: 1/4Motor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorShaft Dia.: 1/2"
Duty: ContinuousNo. of Speeds: 3
Hz: 60Resilient Ring Dia.: 2-1/4"
Capacitor Required: 2MDV4Nameplate RPM: 1625
Lead Length: 36"Full Load Amps: 3.4
Mounting Stud Pattern: 3-5/8" x 3-5/8"Max. Ambient Temp.: 40 Degrees C
Stud Size: #8-32 x 1-5/8"Length Less Shaft: 4-7/8"
Bolt Circle Dia.: 5-1/7"Body Dia.: 5-5/8"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Frame: 48Y
Ins. Class: AStandards: UL, CSA
Voltage: 115Motor Mounting Type: Stud
Shaft Length: 7-7/8" and 7-1/2"Country of Origin (subject to change): Mexico

Product Description

Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/4 HP, 1625 Nameplate RPM, Voltage 115, 48Y Frame, Motor Service Factor 1.00, 60 Hz, Full Load Amps 3.4, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, No. of Speeds 3, CCWLE Motor Shaft Rotation, 1 Phase, Stud Motor Mounting Type, Sleeve Motor Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-7/8 In., Shaft Dia. 1/2 In., Shaft Length 7-7/8 In. and 7-1/2 In.
