Shop CENTURY

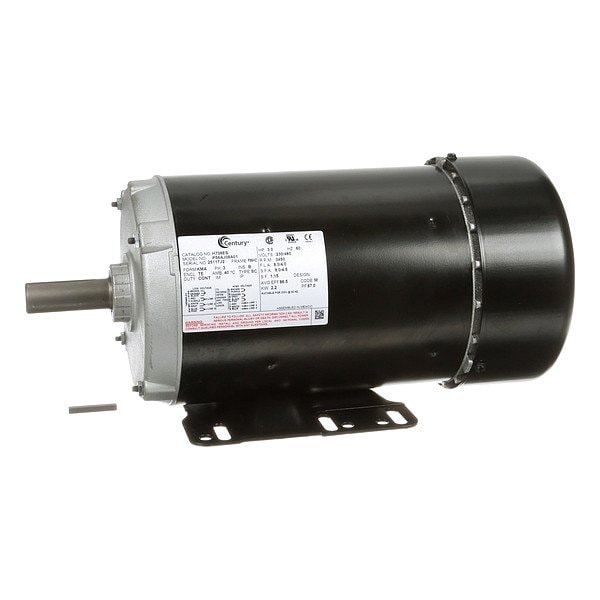

Three-Phase General Purpose Motor, 3 HP, P56HZ Frame, 230/460V Voltage, 3,450 Nameplate RPM

  • Mfr # H738ES

  • Zoro # G111931054

product price:
$
919.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,450
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H738ES
Zoro #
G111931054
UPC #
786674072870
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 11/16 in
Overall Length
15 in
Shaft Dia.
7/8 in
Shaft Length
2 5/16 in
Shaft Diameter
7/8 in
Frame Size
56HZ
Wire Rope Length
15 in
Length
15 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,450
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Frame
P56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3450
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
230/460 V
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA Certified, UL Listed
Motor Thermal Protection
None
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
44 lb
Duty Cycle
Continuous
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,455/1,465 RPM
Frequency
60 Hz
Application
General Purpose
Shaft Design
Keyed
Product Type
General Purpose Motor
Frame Material
Steel
Bearing Type
Ball
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
8.0/4.0 A
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,450, Frame P56HZ, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 3450, CE, CSA Certified, UL Listed
