Shop CHICAGO-LATROBE

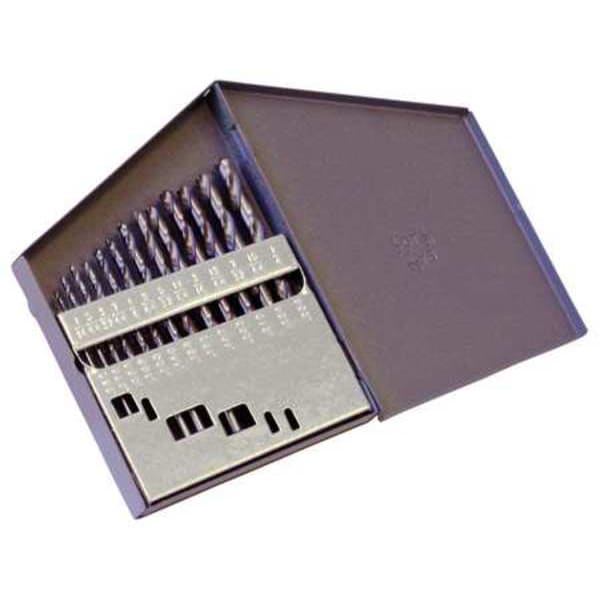

13PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TA TiAlN HSS 1/16-1/4x1/64

  • Mfr # 42801

  • Zoro # G3612384

product price:  $88.69
/ea

Key Features

Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
42801
Zoro #
G3612384
UPC #
662355428016
Country of Origin
United States

Dimensions

Shank Dia.
1/16 in
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4"
Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/4 in by 64ths
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
4xD
Largest Drill Bit Size
1/4 in
Drill Length Class
Jobber-Length
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in
Smallest Drill Bit Size
1/16 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
P3 Split Point
List Number
150ASP
Drill Bit Grouping
Drill Bit Set
Standards
NAS 907 Type B
Primary Material Application
All Materials
Finish - Machining
TiAlN
Aircraft Drill
Yes
Number of Drill Bits
13
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Shank Type - Machining
Straight
Material Grade - Machining
Heavy Duty
Drill Bit Point Type
Split Point
Flute Type
Spiral
Drill Bit Case Type
Drill Index

Description

The CHICAGO-LATROBE 42801 is a jobber length drill bit set consisting of 13 high-speed steel bits intended for use on materials within its specified use case (high-speed steel drill bits with spiral flutes). The bits have a P3 split point with a 135-degree point angle for drilling performance characteristics associated with reduced walking. Sized in fractional inches, the set covers diameters ranging from 1/16 inch to 1/4 inch with fractional-inch sizes from 1/16 inch to 1/4 inch to fit specified drilling diameters. It is marked as NAS 907 Type B.

Key Features:

  • Drill bit sizes included: 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4".
  • Material: Heavy duty high-speed steel with TiAlN coating/finish.
  • Shank diameter: 1/16" with straight shank type.
  • Drill length class: Jobber length with a 4x diameter depth-to-length ratio.
  • Flute type: has spiral flutes.
  • Cutting direction: Right hand.
  • Included storage: Metal drill index case.
  • Point type: P3 split point for precise starts and reduced walking.
  • Standard: NAS 907 Type B, indicating suitability for aircraft-grade work.
