  9. 1" D-Handle Air Impact Wrench 1400 ft.-lb.

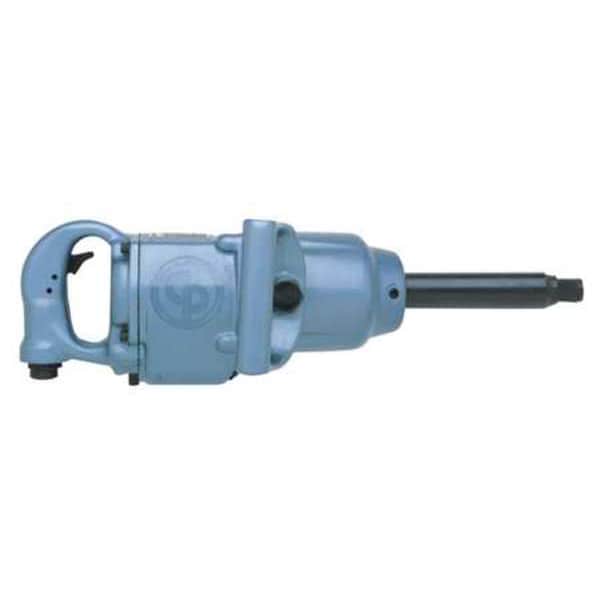

Chicago Pneumatic 1" D-Handle Air Impact Wrench 1400 ft.-lb. CP797-6 - main

1" D-Handle Air Impact Wrench 1400 ft.-lb.

  • Mfr # CP797-6

  • Zoro # G3731131

product price: $1,237.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
4,200 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Housing Material
Aluminum Cast
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP797-6
Zoro #
G3731131
UPC #
015451009298
Country of Origin
Japan

Dimensions

Square Drive Size
1"
Air Inlet Size - Air Tools
1/2" NPT
Min. Hose Size
1/2 in
Anvil Length - Air Impacts
1.250"
Drive Size - Air Tools
1" Square
Overall Length
22 1/4 in
Drive Size
1 in Square
Extended Anvil Length
6 in

Details

Item
Impact Wrench
Free Speed
4,200 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Housing Material
Aluminum Cast
Style
D-Handle
Anvil
6" Extended
Duty Cycle - Air Tools
General Duty
Features
Convenient Reverse Valve, High Performance And Durability, Teasing Throttle
Blows per Minute
1080
Max. Torque
1400 ft.-lb.
Blows per Minute - Air Tools
1080
Item - Air Impact Wrenches
Air Impact Wrench
Body Style - Air Tools
D-Handle
Torque Range
150 to 900 ft.-lb.
Duty
General
Handle Material
Aluminum Cast
Retainer Type
Friction Ring
Tool Weight
29.8 lb
Average CFM @ 15 Second Run Time
10.00
Max. Bolt Capacity
1 1/4 in
Retainer Type - Air Impacts
Ring
Anvil Type - Air Impacts
6" Extended
CFM @ Full Load
40.0
Required Pressure
90 psi
Standards
EN ISO 11148-6:2013, ISO-28927-2
Exhaust Location
Bottom
Built-In Light
No
Max. Air Pressure
90 psi
Power Source
Air Powered
Drive Type
Extended
Vibration Level
12.8 m/sq sec
Fastening Torque
900 ft-lb
Breakaway Torque
1,400 ft-lb
Clutch Style
Double Rocking Dog
Tool Style
Compact
Duty Rating
General Duty
Power to Weight Ratio
47.1 ft-lb/lb
Impact Sound Level
121 dB
Min. Air Pressure
90 psi
Air Consumption
40 cfm
Impact Rated
Yes
Air Pressure
90 psi
Impacts per Minute
1,080
Number of Speed Settings
3

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 40 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,400 ft-lb, Fastening Torque 900 ft-lb, Free Speed 4,200 RPM, Impact Rated Yes, Impact Sound Level 121 dB, Impacts per Minute 1,080, Number of Speed Settings 3, Power to Weight Ratio 47.1 ft-lb/lb, Max. Bolt Capacity 1 1/4 in, Drive Size 1 in
