  9. 1/2" Reversible Pistol Air Drill 850 rpm

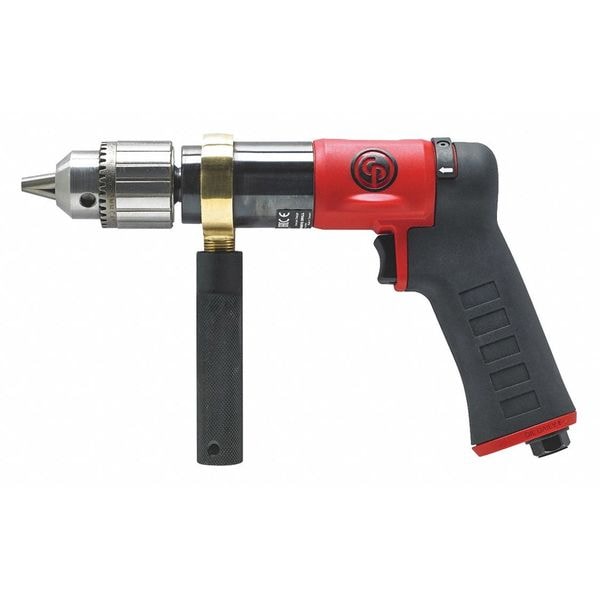

Chicago Pneumatic 1/2" Reversible Pistol Air Drill 850 rpm CP9789C - main

1/2" Reversible Pistol Air Drill 850 rpm

  • Mfr # CP9789C

  • Zoro # G5283183

product price: $320.99
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
1/2 in
CFM @ Full Load
27.6
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP9789C
Zoro #
G5283183
UPC #
015451777500
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
1/2 in
Min. Hose Size
3/8 in
Overall Length
10 3/8 in
Air Inlet Size - Air Tools
1/4 in NPT
Chuck Size
1/2 in
Spindle Thread Size
3/8"-24
Overall Width
1 7/8 in
Overall Height
6 in

Details

Item
Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
27.6
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
Yes
Required Pressure
90 psi
Free Speed
840 RPM
Duty Cycle - Air Tools
General Duty
Torque
10.30 ft-lb
Variable Speed
Yes
Housing Material
Composite
Gear Train
Planetary
Body Style - Air Tools
Pistol
Item - Air Drills
Air Drill
Handle Material
Rubber
Bearings
Ball
Style
Pistol
Duty
General
Tool Weight
3.1 lb
Includes
Chuck Key, Jacobs Chuck
Average CFM @ 15 Second Run Time
6.90
Throttle Type
Trigger
Drill Chuck Type
Keyed
Handle Type
Pistol Grip
Power Source
Air-Powered
Reversible
Yes
Bearing Design
Ball
Side to Center
2 in
Drilling Capacity in Cast Iron
1/2 in
Drilling Capacity in Steel
3/8 in
Vibration Level
2.5 m/sq sec
Noise Level
88 3/10 dB
Air Pressure
90 psi
Max. Torque
10.3 ft-lb
Chuck Material
Metal
Exhaust Location
Handle
Duty Rating
Industrial Duty
Horsepower
0.5 hp
Air Consumption
27.5 cfm
Min. Torque
0 ft-lb
Torque Range
0 ft-lb to 10.3 ft-lb
Application
Drilling, Reaming Holes

Description

Air-Powered Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 1/2 in, Drill Chuck Type - Air Drills Keyed, Reversing Yes, Pistol Body Style - Air Tools, Free Speed 840 RPM, General Duty Duty Cycle - Air Tools, Torque 10.30 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 6.90, CFM @ Full Load 27.6, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite
