1/2" Pistol Air Drill 3000 rpm

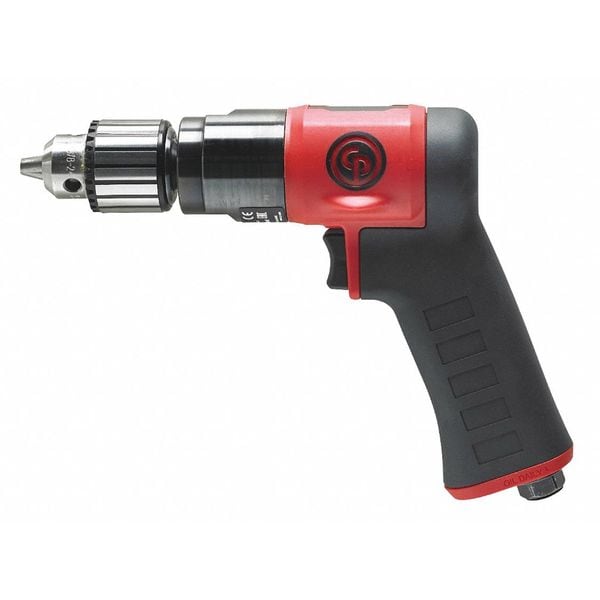

Chicago Pneumatic 1/2" Pistol Air Drill 3000 rpm CP9285C
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$121.83
  • Item: Drill
  • HP: 0.60
  • Item - Air Drills: Air Drill
See full product details
This item ships free.
Total: $121.83

Chicago Pneumatic #CP9285C Specifications

  • Item: Drill
  • HP: 0.60
  • Item - Air Drills: Air Drill
  • HP - Air Tools: 0.60
  • Chuck Size - Air Drills: 3/8 in
  • CFM @ Full Load: 21.0
  • Air Inlet: 1/4 in
  • Drill Chuck Type - Air Drills: Keyed
  • Min. Hose Size: 3/8 in
  • Reversing: No
  • Free Speed: 3,000 RPM
  • Required Pressure: 90 psi
  • Duty Cycle - Air Tools: General Duty
  • Overall Length: 8 1/4 in
  • Torque: 4.10 ft-lb
  • Throttle Type: Trigger
  • Style: Pistol
  • Includes: Chuck Key, Jacobs Chuck
  • Body Style - Air Tools: Pistol
  • Duty: General
  • Housing Material: Composite
  • Handle Material: Rubber
  • Gear Train: Planetary
  • Air Inlet Size - Air Tools: 1/4 in NPT
  • Variable Speed: Yes
  • Average CFM @ 15 Second Run Time: 6.90
  • Chuck Size: 3/8 in
  • Bearings: Ball
  • Tool Weight: 2.4 lb
  • Drill Chuck Type: Keyed
  • Handle Type: Pistol Grip
  • Reversible: No
  • Air Pressure: 90 psi
  • Power Source: Air-Powered
  • Torque Range: 0 ft-lb to 4.1 ft-lb
  • Noise Level: 83 7/10 dB
  • Horsepower: 0.6 hp
  • Spindle Thread Size: 3/8"-24
  • Exhaust Location: Handle
  • Vibration Level: 2.5 m/sq sec
  • Application: Drilling, Reaming Holes
  • Max. Torque: 4.1 ft-lb
  • Chuck Material: Metal
  • Overall Width: 2 in
  • Bearing Design: Ball
  • Air Consumption: 27.5 cfm
  • Side to Center: 2 in
  • Overall Height: 6 in
  • Duty Rating: Industrial Duty
  • Min. Torque: 0 ft-lb
  • Country of Origin (subject to change): Taiwan, Province of China
Feedback Help us improve our product information

Description

Drill, HP - Air Tools 0.60, Chuck Size - Air Drills 3/8 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 3,000 RPM, General Duty Duty Cycle - Air Tools, Torque 4.10 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 6.90, CFM @ Full Load 21.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary
