Chicago Pneumatic

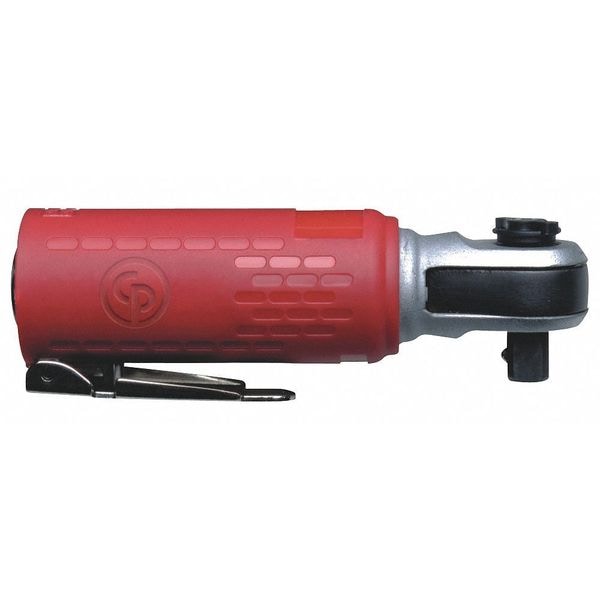

3/8" 27 ft.-lb. Air Ratchet Wrench

product price: $173.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Size - Air Tools 3/8" Square
  • Max. Torque 27 ft.-lb.
  • Torque Range 5 to 27 ft.-lb.
  • Duty Cycle - Air Tools General Duty
  • Free Speed 270 RPM
See all product information

Product Information

Dimensions

Drive Size - Air Tools 3/8" Square
Length 5-7/64"
Air Inlet Size - Air Tools 1/4" NPT
Head Width 1-5/8"
Head Height 3/4"
Square Drive Size 3/8"
Overall Length 5 in
Min. Hose Size 3/8 in
Drive Size 3/8 in Square

Details

Item - Air Ratchets Air Ratchet Wrench
Max. Torque 27 ft.-lb.
Torque Range 5 to 27 ft.-lb.
Duty Cycle - Air Tools General Duty
Free Speed 270 RPM
Throttle Lever
Exhaust Front
CFM @ Full Load 12.0
Item Ratchet
Duty General
Handle Material Aluminum with Rubber Grip
Variable Speed No
Reversing Yes
Housing Material Aluminum
Min. Hose 3/8"
Retainer Type Ball Detent
Required Pressure 90 PSI
Average CFM @ 15 Second Run Time 3.00
Air Inlet 1/4 in NPT
Tool Weight 1.1 lb
Features Compact, Quick Socket Release Button
Min. Air Pressure 90 psi
Power Source Air Powered
Exhaust Location Side
Max. Air Pressure 90 psi
Side to Center 1/2 in
Air Consumption 3 cfm
Duty Rating General Duty
Air Pressure 90 psi
Fastening Torque 27 ft-lb

Description

Ratchet, Air Powered, Air Consumption 3 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Side, Drive Size 3/8 in Square, Retainer Type Ball Detent, Free Speed 270 RPM, Fastening Torque 27 ft-lb, Duty Rating General Duty, Tool Brand Chicago Pneumatic, Overall Length 5 in, Side to Center 1/2 in, Tool Weight 1.1 lb
