Shop CHICAGO PNEUMATIC

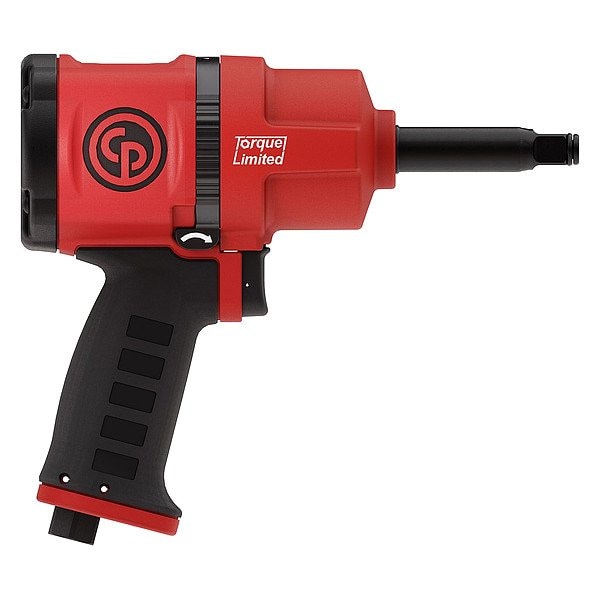

AirImpactWrench, 1/4in, NPT, Pistol-Grip

  • Mfr # CP7748TL-2

  • Zoro # G311420310

original price:  $334.99 , new price: $284.99 , 14 percent off
new price:
$
284.99
/ea
Free Shipping & Returns

Key Features

Free Speed
7,000 RPM
Air Inlet
1/4 NPT
Handle Type
Pistol-Grip
Extended Anvil Length
2 in
Air Consumption
6 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP7748TL-2
Zoro #
G311420310
UPC #
015451780753
Country of Origin
Taiwan, Province of China

Dimensions

Extended Anvil Length
2 in
Drive Size
1/2 in
Min. Hose Size
19/50 in
Overall Length
8 7/8 in
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
3/8 in
Wire Rope Length
8 7/8 in
Length
8 7/8 in

Details

Item
Air Impact Wrench
Free Speed
7,000 RPM
Air Inlet
1/4 NPT
Handle Type
Pistol-Grip
Air Consumption
6 cfm
Features
Lightweight and Compact for Improved Comfort, Low Vibration Tool Due to Lower Torque in Forward, Torque Limited in Forward to Limit the Risk of Over Tightening and Maximum Torque in Reverse
Handle Material
Rubber
Duty Rating
General Duty
Includes
Air Impact Wrench Tool
Housing Material
Composite
Built-In Light
No
Breakaway Torque
960 ft-lb
Standards
ISO 15744, ISO 28927-2
Fastening Torque
103 ft-lb
Impact Sound Level
94 dBA
Tool Weight
4.65 lb
Explosive Environment Rated
No
Air Pressure
90 psi
Max. Bolt Capacity
1/2 in
Drive Type
Extended
Clutch Style
Twin Hammer
Tool Style
Compact
Retainer Type
Friction Ring
Impact Rated
Yes
Max. Air Pressure
90 psi
Vibration Level
11.3 m/sq sec
Min. Air Pressure
90 psi
Power Source
Air-Powered
Bolt Capacity - Maximum
1 in
Air Pressure - Maximum
90 psi
Tool Life
Long Lasting
Frequency of Use
Maintenance to Light Production
Air Pressure - Minimum
90 psi
Air Inlet Type
NPT
Drive Shape
Square
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air Impact Wrench, Extended Anvil, Power Source Air Powered, Air Consumption 6.2 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 19/50 in, Exhaust Location Not Applicable, Duty Rating General Duty, Breakaway Torque 960 ft-lb, Fastening Torque 103 ft-lb, Free Speed 7,000 RPM, Impact Rated Yes, Explosive Environment Rated No, Explosive Environment Rating Not Applicable, Impact Sound Level 94.3 dBA, Impacts per Minute Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
