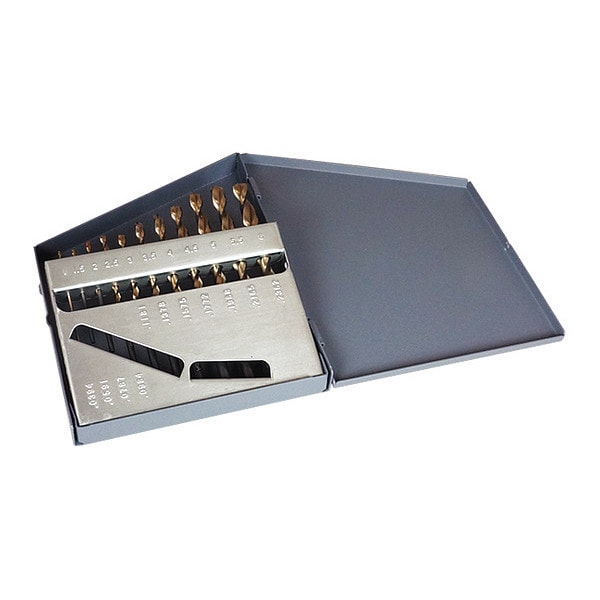

11PC 135 Degree Heavy-Duty Parabolic Jobber Drill Set Cle-Line 1872 Black & Gold HSS 1mm-6mmx.5mm

  • Mfr # C18626

  • Zoro # G4954601

product price:
$
35.85
/ea

Key Features

Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Depth:Dia. Ratio
8xD
Depth x Dia. Ratio
8xD
Flute Type
Parabolic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18626
Zoro #
G4954601
UPC #
697334186267
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
8xD
Depth x Dia. Ratio
8xD
Drill Bit Dimension Type
Metric
Drill Bit Size
1 mm to 6 mm by 0.5 mm
Overall Length
1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in
Largest Drill Bit Size
6 mm
Drill Bit Sizes Included
1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm
Smallest Drill Bit Size
1 mm
Drill Length Class
Jobber-Length
Wire Rope Length
1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in
Length
1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in

Details

Item
Jobber Length Drill Bit Set
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Flute Type
Parabolic
List Number
1872
Number of Flutes
2
Standards
ASME B94.11M, DIN 338
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Primary Material Application
Aluminum, Cast Iron, Steel
Measurement System
Metric
Drill Bit Point Type
Split Point
Finish - Machining
Black and Gold
Spiral Direction
Right Hand
Number of Drill Bits
11
Drill Bit Case Type
Drill Index
Series
1872
Thread Direction
Right Hand
Primary Material Application ISO Code
K, N, P
Material Grade - Machining
Heavy Duty
Helix Angle - Minimum
35 Degrees
Helix Angle - Maximum
45 Degrees

Description

The CLE-LINE - C18626 is a metric jobber length drill bit set consisting of 11 drill bits for drilling operations on metal materials such as aluminum, cast iron, and steel. The bits feature a split point tip with a 135-degree point angle and a parabolic flute design, conforming to the specified bit geometry, including a split point tip and 135-degree point angle, for drilling applications. This drill bit set is intended for right-hand cutting direction and requires external coolant application (non-coolant-through design).

Key Features:

  • Drill bit sizes range from 1 mm to 6 mm.
  • overall length range: 1 11/32 inches to 3 21/32 inches (varies by bit size).
  • Intended for drilling metal materials using the specified bit geometry.
  • Straight shank type suitable for standard chuck systems.
  • Equipped with a black and gold finish.
  • Designed with a depth-to-diameter ratio of 8xD.
  • Intended for use on ISO material groups K, N, and P (aluminum, cast iron, steel).
