25PC 1mm-13mmx.5mm 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright HSS RHS/RHC
Mfr # C18127
Zoro # G4952599
product price:
$
105.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
36
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Grouping
Drill Bit Set
Depth:Dia. Ratio
4xD
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C18127
- Zoro #
- G4952599
- UPC #
- 697334181279
- Country of Origin
- United States
Dimensions
- Depth:Dia. Ratio
- 4xD
- Shank Dia.
- 0mm
- Drill Bit Dimension Type
- Metric
- Depth x Dia. Ratio
- 4xD
- Drill Bit Size
- 1 mm to 13 mm by 0.5 mm
- Drill Point Length
- Various
- Drill Length Class
- Jobber-Length
- Drill Diameter Tolerance
- +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
- Smallest Drill Bit Size
- 1 mm
- Drill Bit Sizes Included
- 0.5 mm, 1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm
- Largest Drill Bit Size
- 13 mm
Description

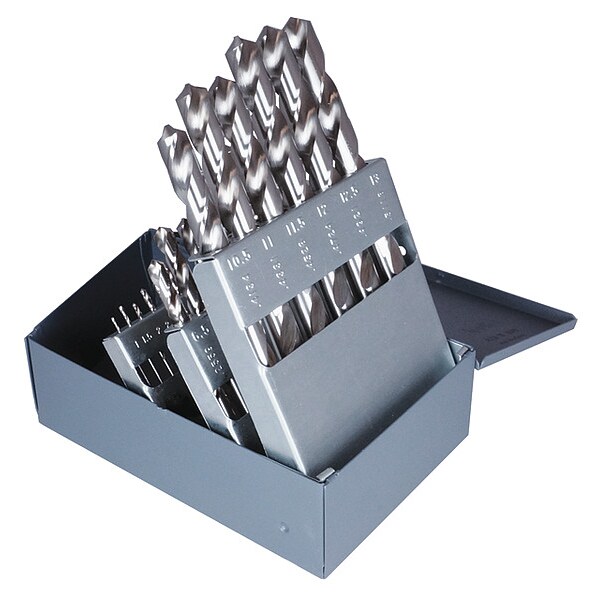

The CLE-LINE C18127 is a jobber length drill bit set for drilling applications. It includes 25 high speed steel drill bits sized 1 mm, 1.5 mm, 2 mm ... up to 13 mm, with 0.5 mm increments. The drill bits feature a straight shank and are uncoated with a bright finish. These drill bits have a right-hand spiral and cutting direction, with a 118-degree radial point angle intended for drilling applications within the stated specifications (jobber length, point angle 118° and right-hand spiral). Not specified for through-coolant use; coolant must be applied externally if used.
Key Features:
- Contains 25 drill bits sized 1 mm, 1.5 mm, 2 mm ... up to 13 mm (0.5 mm increments).
- Material: High Speed Steel, bright (uncoated) finish.
- Spiral flute with helix angle: variable (as specified by the manufacturer); right-hand spiral and cutting direction.
- Point angle: 118 degrees, radial point type.
- Drill diameter tolerance ranges from +0.0000 in / -0.0005 to -0.0010 in.
- Not specified for through-coolant use; coolant must be applied externally if used.
- Part of the Series 1898; set includes 36 pieces total.
