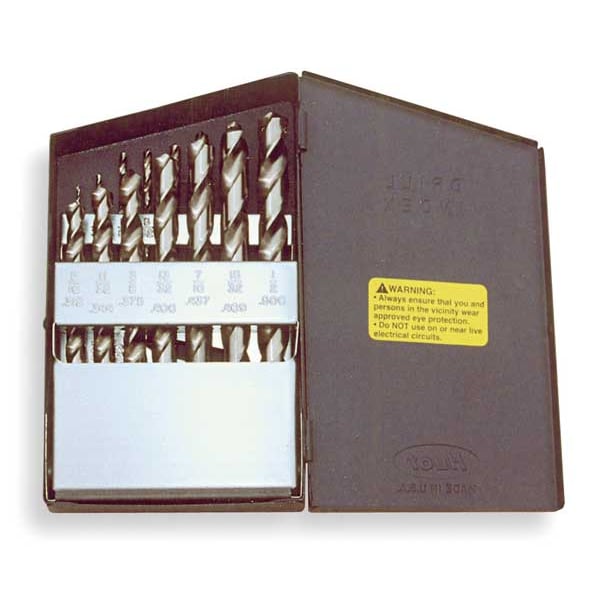

15PC 3/8 Reduced Shank General Purpose Jobber Drill Set Cle-Line 1900 Steam Oxide HSS 1/16-1/2x1/32

  • Mfr # C21156

  • Zoro # G2953596

product price:
$
72.79
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Drill Bit Dimension Type
Fractional Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C21156
Zoro #
G2953596
UPC #
697334211563
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Fractional Inch
Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Shank Dia.
3/8 in
Drill Bit Size
1/16 in to 1/2 in by 32nds
Depth:Dia. Ratio
4xD
Depth x Dia. Ratio
4xD
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in, 9/32 in
Size Range
1/16"-1/2"
Maximum Drilling Depth
Variable
Drill Diameter Tolerance
+0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/2 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Reduced Shank Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
List Number
1900
Point Type
Conventional Point
Application
For Carbon Steel And Cast Iron
Shank Type
Round
Number of Flutes
2
Flute Type
Spiral
Material - Machining
High Speed Steel
Primary Material Application
Cast Iron, Steel
Finish - Machining
Black Oxide
Shank Type - Machining
Reduced
Standards
Not Rated
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Measurement System
Fractional Inch
Left/Right Hand
Right
Drill Style
Jobber Drill
Coolant Fed
Non-Coolant Through
Helix Angle
21 Degrees to 34 Degrees
Series
1900
Material Grade - Machining
General Purpose
Drill Bit Point Type
Radial Point
Thread Direction
Right Hand
Helix Angle - Minimum
21 Degrees
Number of Drill Bits
15
Helix Angle - Maximum
34 Degrees
Drill Bit Case Type
Metal Index

Description

The CLE-LINE - C21156 is a 15-piece reduced shank drill bit set. Drill bit sizes range from 1/16 inch to 1/2 inch in fractional increments, suitable for various drilling depths. Each drill bit has a 3/8 inch round reduced shank to fit compatible chucks.

Key Features:

  • Material: High speed steel (HSS)
  • Sizes included: 1/16" to 1/2" by 32nds (15 sizes)
  • Overall lengths vary from 1 7/8" to 6"
  • Helix angle: between 21° and 34°
  • Point angle: 118°
  • Shank type: 3/8" round, reduced shank
  • Cutting and spiral direction: Right hand
  • Finish: Black oxide
  • Drill diameter tolerance: +0.0000 in / -0.0005 to -0.0010 in
