29PC 135 Degree Heavy-Duty Parabolic Jobber Length Drill Set Cle-Line 1872-TN TiN HSS RHS/RHC 1/16-1/2
Mfr # C18703
Zoro # G0963121
Key Features
Specifications
Product Information
- MFR #
- C18703
- Zoro #
- G0963121
- UPC #
- 697334187035
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Depth:Dia. Ratio
- 8xD
- Shank Dia.
- 1/6 in
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Depth x Dia. Ratio
- 8xD
- Smallest Drill Bit Size
- 1/16 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Largest Drill Bit Size
- 1/2 in
- Drill Length Class
- Jobber-Length
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Size Range
- 1/16"-1/2"
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

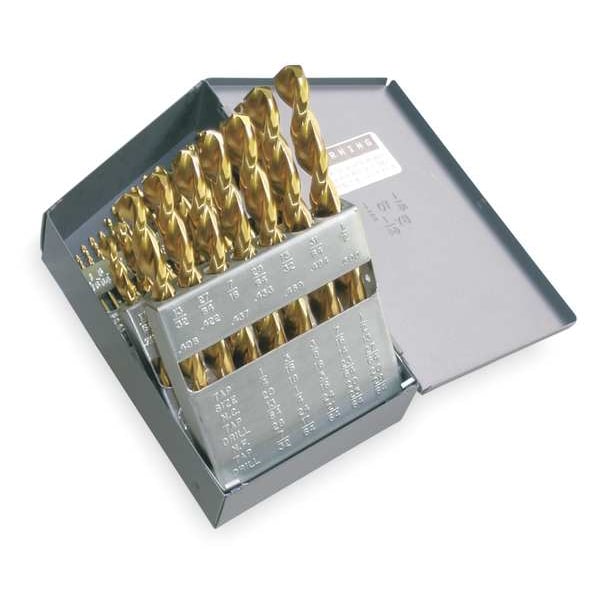

The CLE-LINE C18703 Drill Bit Set includes 29 jobber-length drill bits made from high speed steel (HSS) with a TiN finish. These right-hand spiral drill bits have a split point tip and are intended for drilling applications in aluminum, cast iron, stainless steel, and steel. The set includes 29 jobber-length bits with fractional inch diameters from 1/16 in. to 1/2 in. (by 64ths) with various overall lengths ranging from 1 7/8" to 6". The bits have a straight shank and two flutes with a helix angle between 35° and 45°. The set is manufactured in accordance with ASME B94.11M-1993 and DIN 338 standards.
Key Features:
- Size range from 1/16" to 1/2" fractional inch diameters by 64ths
- 29 pieces included covering standard fractional increments
- Material: made from high speed steel (HSS) with a TiN finish
- Split point tip with a 135° point angle with a split point tip and a 135° point angle for effective penetration
- Right-hand spiral with two flutes and the specified helix angle range (35° to 45°)
- Jobber length drill bits with overall lengths from 1 7/8" to 6"
- Straight shank, 1/6" diameter
- Intended for drilling applications in aluminum, cast iron, stainless steel, and steel
- Supplied in metal index case for organized storage
- Compliance: is manufactured in accordance with ASME B94.11M-1993 and DIN 338 standards
