Shop COLSON

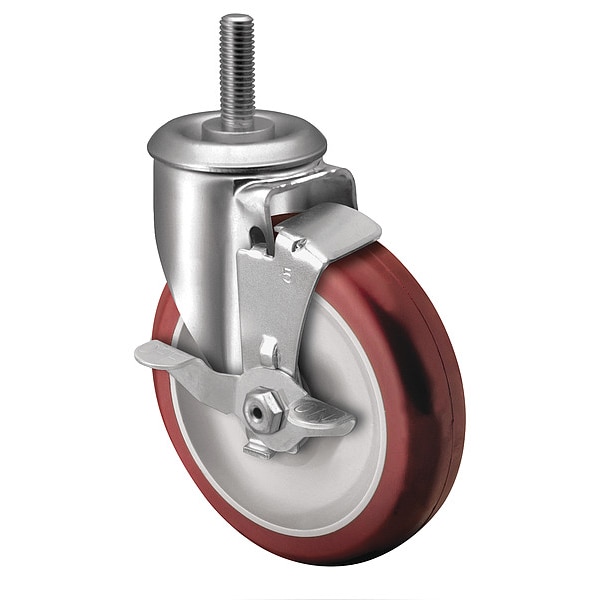

3" X 1-1/4" Non-Marking Polyurethane Hi-Tech Swivel Caster, Side Brake, Loads Up To 200 lb

  • Mfr # 2.03354.92 BRK0001

  • Zoro # G7812746

product price:  $26.59
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1 1/4 in
Mounting Height
4 in
Load Rating
200 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2.03354.92 BRK0001
Zoro #
G7812746
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
4 in
Stem Length
1 1/2 in
Thread Size
13UNC
Wheel Dia.
3 in
Caster Stem Size
1"-13 x 1 1/2 in
Stem Dia.
1/2 in

Details

Item
Premium General Institutional Threaded Stem Caster W/ Brake
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
200 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyurethane Hi-Tech
Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain Bore (None)
Wheel/Tread Hardness Rating
Hard
Number of Wheels
1
Operating Temperature Range
-45°F to 180°F
Wheel Core Type
Solid
Caster Mounting Type
Stem
Series
2
Wheel/Tread Hardness
45(±5) Shore D
Core Color
Maroon
Wheel/Tread Color
Red
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyurethane
System of Measurement
Inch
Frame Finish
Zinc Plated
Caster Product Group
Swivel Caster with Brake
Caster Sub-Type
Swivel
Load Capacity - Maximum
250 lb
Operating Temperature - Minimum
-45 Degrees F
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
45 Shore D
Operating Temperature - Maximum
180 Degrees F
Number of Mounting Holes
0

Description

Stem Caster, Swivel Caster with Brake, 250 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 4 in Mounting Height, Ball, 1 In.-13 x 1 1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
