Shop DAKE

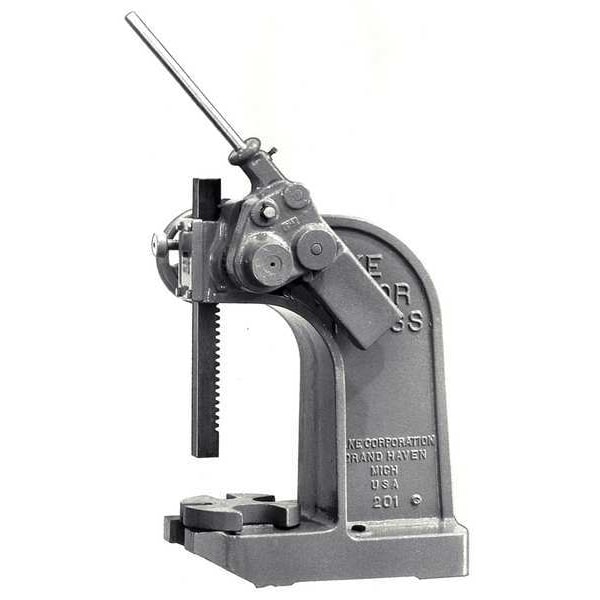

Arbor Press, 6 Tons

  • Mfr # 903004
  • Zoro # G2167326
product price:
$
3,379.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Force in Tons
6 ton
Swing (In.)
7 3/4 in
Table Work Surface (In.)
6-3/4 x 6-3/4 in
Anvil Dia. Work Area (In.)
8 1/8 in
Range of Slot Widths (In.)
1/2 to 3-1/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
903004
Zoro #
G2167326
UPC #
-
Country of Origin
United States

Dimensions

Anvil Dia. Work Area (In.)
8 1/8 in
Range of Slot Widths (In.)
1/2 to 3-1/16 in
Height (In.)
26 in
Base Size (In.)
8-1/4 x 20 in
Depth (In.)
20 in
Max. Work Height (In.)
15 in
Width (In.)
8 1/4 in
Ram Dimensions (In.)
1.5 x 1.5 x 19 in
Maximum Work Height
15 in
Overall Width
8 1/4 in
Base Size
8 1/4 x 20 in
Overall Depth
20 in
Anvil Diameter Work Area
8 1/8 in
Range of Slot Widths
1/2 to 3 1/16 in
Ram Dimensions
1.5 x 1.5 x 19 in
Overall Height
26 in
Fits Chest Size
Compound Leverage Mechanism Allows Greater Pressure Application With Minimum Effort And Sliding Pin Easily Converts Press From Compound To Single Leverage

Details

Force in Tons
6 ton
Swing (In.)
7 3/4 in
Table Work Surface (In.)
6-3/4 x 6-3/4 in
Construction
Machined Gray Iron Cast Frame With Heat Treated And Ground Spindle, Heat Treated Ram, And Machined Table Plate
Item
Arbor Press
Includes
Rotating Table and Hand Operated Brake
Features
Compound Leverage Mechanism Allows Greater Pressure Application With Minimum Effort And Sliding Pin Easily Converts Press From Compound To Single Leverage
Force Range (Lbs.)
0 to 12000 lb
Lever Type
Compound
Swing
7 3/4 in
Table Work Surface
6 3/4 x 6 3/4 in
Ram Shape
Square
Force
6 ton
Force Range
0 to 12000 lb
Material
Machined Gray Iron Cast Frame With Heat Treated And Ground Spindle, Heat Treated Ram, And Machined Table Plate
Shell Material
Machined Gray Iron Cast Frame With Heat Treated And Ground Spindle, Heat Treated Ram, And Machined Table Plate

Description

Arbor Press, Force in Tons 6 ton, Force Range (Lbs.) 0 to 12000 lb, Swing (In.) 7 3/4 in, Table Work Surface (In.) 6-3/4 x 6-3/4 in, Anvil Dia. Work Area (In.) 8 1/8 in, Range of Slot Widths (In.) 1/2 to 3-1/16 in, Max. Work Height (In.) 15 in, Ram Dimensions (In.) 1.5 x 1.5 x 19 in, Height (In.) 26 in, Width (In.) 8 1/4 in, Depth (In.) 20 in, Base Size (In.) 8-1/4 x 20 in, Machined Gray Iron Cast Frame With Heat Treated And Ground Spindle, Heat Treated Ram, And Machined Table Plate Construction
