Shop EM&S

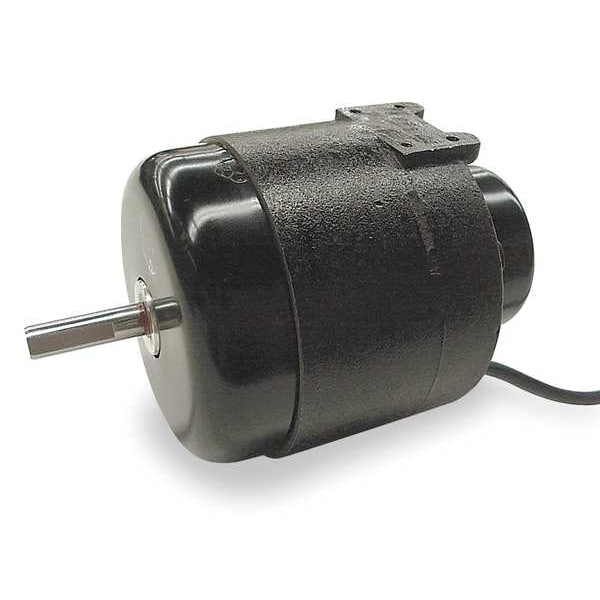

Unit Bearing Motor, 1/15 hp

  • Mfr # ESP-OL60EM2
  • Zoro # G1652043
product price:
$
127.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ESP-OL60EM2
Zoro #
G1652043
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
1 1/2 in
Overall Length
5 1/4 in
Cord Length
22 in
Body Dia.
3 7/8 in
Length Less Shaft
4 1/4 in
Shaft Dia.
3/8 in
Shaft Diameter
3/8 in
Body Diameter
3.9 in
Frame Size
Non-Standard
Wire Rope Length
5 1/4 in
Length
5 1/4 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Phase
Single
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,500
Frame
Non-Standard
Motor Design
Shaded Pole
Hz
60 Hz
Motor Service Factor
1
Motor Enclosure Design
Open Air-Over
Plug Type
Round 2 Pin
Max. Ambient Temp.
40 Degrees C
Item
Unit Bearing Motor
Frame Material
Cast Iron
Motor Frame Material
Cast Iron
Ins. Class
A
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Full Load Amps
1.1-1.2 A
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Rear/Foot
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
No. of Speeds
1
Usable @ 208V
Usable at 208V
Features
Precision Machined Housing with Positive Flow Lubrication and a Preoiled Felt Wick for Extended use with No Reoiling
Usable @ 200V
Not Usable at 200V
Mounting Holes
Tapped 8-36
Number of Speeds
1
Wattage
50 W
Bearing Type
Sleeve
Mounting Position
Horizontal
Product Type
Unit Bearing Motor
Frequency
60 Hz
Sub Application
Unit Bearing
Application
Condenser Fan
Motor Enclosure Type
Open Air Over
Insulation Class
A
Shaft Design
Flat
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.1-1.2 A
Ambient Temperature - Maximum
40 Degrees C

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 208-230V AC, 1.1-1.2 A Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
