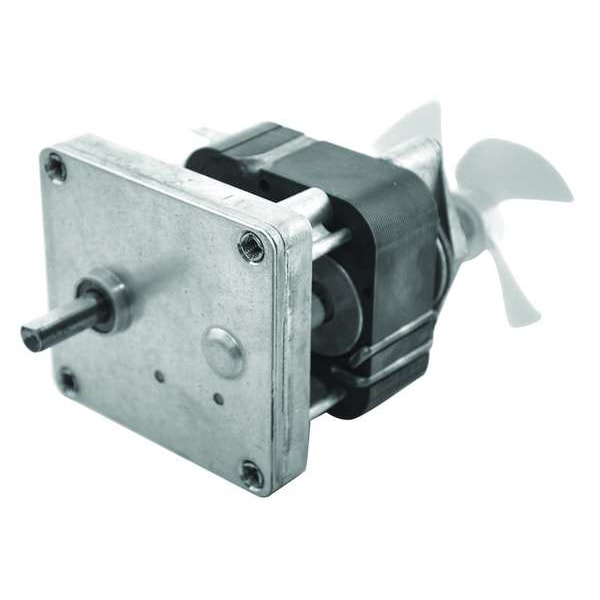

Dayton AC Gearmotor, 13 in-lb Max. Torque, 25 RPM Nameplate RPM, 115V AC Voltage, 1 Phase 52JD92 - main

AC Gearmotor, 13 in-lb Max. Torque, 25 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Mfr # 52JD92

  • Zoro # G6618407

product price:  $73.79
/ea

Key Features

Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
13 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
52JD92
Zoro #
G6618407
UPC #
00663001709527
Country of Origin
Mexico

Dimensions

Length Less Shaft
4.13 in
Shaft Dia. (Dimension U)
5/16 in
Overall Length
5.13 in
Shaft Length (Dimension V)
1 in
Output Shaft Length
1 in
Output Shaft Height
3.32 in
Mount Hole Center-to-Center Length
4.75 in
Overall Height
4.69 in
Output Shaft Diameter
5/16 in
Mount Hole Center-to-Center Width
2.38 in
Overall Width
2.75 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
13 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
25 RPM
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
Magnetic
Gearmotor Mounting Position
All Angle
Full Load Amps
0.75
Standards
UL Recognized
Input HP
1/70 hp
Gear Type
Spur
Max. Ambient Temp.
40 Degrees C
Application
Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Security Systems, Ticket Dispensing, Valve Actuators, Vending, Water Softeners, X-Ray Equipment
Brake
Magnetic
Gears
Spur
Starting Torque
11 in-lb
Bearings
Sintered Bronze Sleeve
RPM Range
16 to 30
Lubrication
Grease Filled
Gear Ratio
125.5:1
Phase
Single
Gear Case Material
Die Cast Zinc with Steel Cover
Thermal Protection
Auto
Finish
Unpainted
Enclosure
Open
Service Factor
1
No Load RPM
28 RPM
Motor Type
Shaded Pole
Voltage
115
Overhung Load
30 lb
Rotation
CW
Gear Material
Sintered Steel
Housing
Die Cast Zinc
Capacitor Required
No
Hz
60 Hz
Motor Shaft Design
Flat
Insulation Class
A
Shaft Orientation
Parallel
Reversible Shaft Output
No
Mounting
All Position
Shaft
Single Output
Number of Brake Discs Required
0
Housing Material
Die Cast Zinc
Input Horsepower
0.014 hp
Motor Enclosure
Open Air-Over
Mounting Orientation
Any Angle
Housing Material Finish
Unpainted
Maximum Ambient Temperature
104 Degrees F
Operating Voltage
115V AC
Overhung Load Capacity
30 lb
Brake Type
Magnetic
Motor Insulation Class
A
Number of Output Shafts
1
No Load Speed
28 RPM
Bearing Type
Sintered Bronze Sleeve
Nameplate Speed
25 RPM
Frequency
60 Hz
Mount Type
Any Position
Maximum Torque
13 in-lb
Full Load Current
0.75 A

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 25 RPM, Maximum Torque 13 in-lb, Overhung Load Capacity 30 lb, Rotation CW, Output Shaft Height 3.32 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 125.5:1, Brake Type Magnetic, Shaft Orientation Parallel, Motor Insulation Class A
