Dayton

Motor, PSC, 1/8 HP, 1550 RPM, 115V, 48Y, TENV

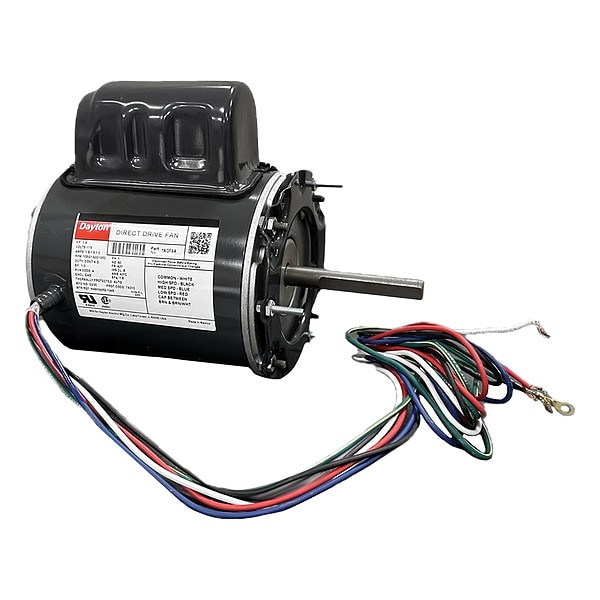

Dayton Motor, PSC, 1/8 HP, 1550 RPM, 115V, 48Y, TENV 1AGF9
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$193.23
  • Full Load Amps: 1.70
  • Motor Sub Application: Direct Drive Fan/Blower
  • Phase: Single
See full product details
This item ships free.
Total: $193.23

Dayton #1AGF9 Specifications

  • Full Load Amps: 1.70
  • Motor Sub Application: Direct Drive Fan/Blower
  • Phase: Single
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Motor Shaft Rotation: CCWSE
  • Ins. Class: B
  • Shaft Dia.: 1/2 in
  • Motor Application: HVAC/R
  • Replacement For: 2RB86, 5TCK8
  • Item: Direct Drive Blower Motor
  • Motor Shaft Design: Flat
  • RPM Range: 1,501-1,600
  • Body Dia.: 5 5/8 in
  • Motor Mounting Type: Stud
  • HP: 1/8
  • Application: Replacement Motor for Mfr. No. 2RB86, 5TCK8
  • Standards: CSA Certified Motor, UL Recognized
  • Motor Service Factor: 1
  • Frame: 48Y
  • Motor Mounting Position: All Angle
  • Capacitor Required: Included
  • Voltage: 115V AC
  • Motor Design: Permanent Split Capacitor
  • Length Less Shaft: 3 7/8 in
  • Motor Thermal Protection: Auto
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Mounting Stud Location: Shaft End
  • Max. Ambient Temp.: 40 Degrees C
  • No. of Speeds: 3
  • Duty: Continuous
  • Motor Bearings: Sleeve
  • Hz: 60 Hz
  • Bolt Circle Dia.: 5 1/4 in
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Stud Size: #10-32
  • Nameplate RPM: 1,550/1,300/1,050
  • Overall Length: 7 in
  • Shaft Length: 3 3/4 in
  • Duty Cycle: Continuous
  • Usable @ 200V: No
  • Mounting Holes: (4) #10-32
  • Includes: Capacitor
  • Usable @ 208V: No
  • Stud Quantity: 4
  • Number of Shafts: 1
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 HP, Nameplate RPM 1,550/1,300/1,050, No. of Speeds 3, Voltage 115V AC, Full Load Amps 1.70, 48Y Frame, Replacement For 2RB86, 5TCK8, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
