Dayton

Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56H Frame

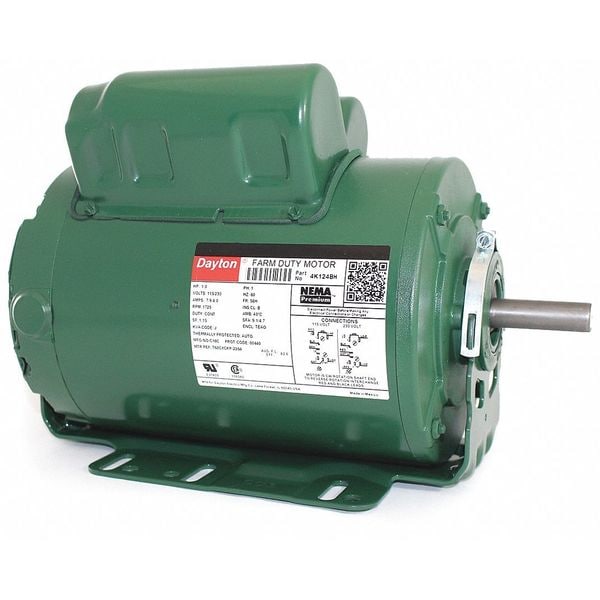

Dayton Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56H Frame 4K124
Tap to zoom
Hover or click to zoom
$261.52
  • Motor Sub Application: Poultry/Livestock Direct Drive Fan
  • Item: Agricultural Fan Motor
  • Motor Design: Capacitor-Start/Run
See full product details
This item ships free.
Total: $261.52

Dayton #4K124 Specifications

  • Motor Sub Application: Poultry/Livestock Direct Drive Fan
  • Item: Agricultural Fan Motor
  • Motor Design: Capacitor-Start/Run
  • Phase: Single
  • HP: 1
  • RPM Range: 1,701-1,800
  • Voltage: 115/230V AC
  • Frame: 56H
  • Motor Service Factor: 1.15
  • Motor Thermal Protection: Auto
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Nameplate RPM: 1,725
  • Motor Application: Farm Duty
  • Motor Frame Material: Rolled Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Cradle Base
  • Motor Shaft Design: Keyed
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Length Less Shaft: 10 1/2 in
  • Full Load Amps: 7.9/4.0
  • Shaft Length: 1 7/8 in
  • Motor Bearings: Ball
  • Item - Farm Duty Motors: Agricultural Fan Motor
  • Shaft Dia.: 5/8 in
  • Duty: Continuous Air Over
  • Max. Ambient Temperature: 40 Degrees C
  • Hz: 60
  • Capacitor Required: Included
  • Ins. Class: B
  • Includes: Gasketed Terminal Access Cover and Capacitor Cover, Shaft Key and Shaft Slinger
  • Nominal Efficiency: 82.6 %
  • Overall Length: 12 3/8 in
  • Max. Ambient Temp.: 40 Degrees C
  • No. of Speeds: 1
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple

Description

Agricultural Fan Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.9/4.0, 56H Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
