Shop DAYTON

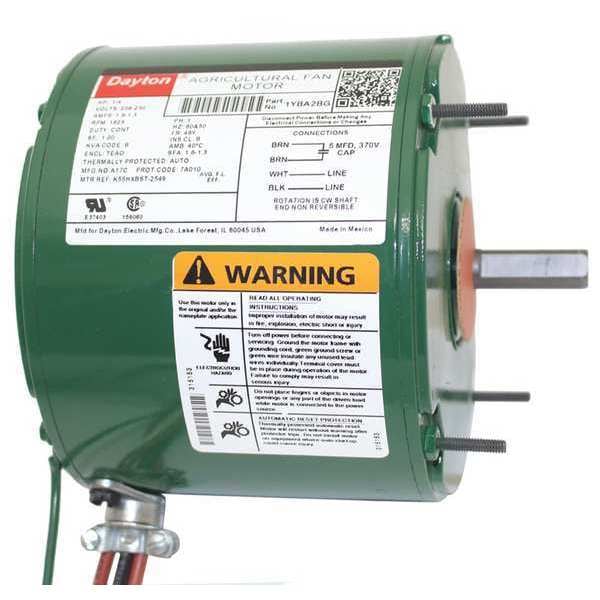

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 208-230V AC, 1,625 Nameplate RPM

  • Mfr # 1YBA2BG
  • Zoro # G1641762
product price:
$
314.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4 hp
RPM Range
1,601-1,700
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YBA2BG
Zoro #
G1641762
UPC #
190735150238
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 9/16 in
Shaft Length
1 9/16 in
Overall Length
6 1/8 in
Shaft Dia.
1/2 in
Wire Rope Length
6 1/8 in
Length
6 1/8 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4 hp
RPM Range
1,601-1,700
Voltage
208-230V AC
Frame
48Y
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,625 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Sub Application
Hatchery/Setter
Motor Shaft Design
Double Flat
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Nominal Efficiency
60.9 %
Item - Farm Duty Motors
Agricultural Fan Motor
Includes
Shaft Slinger, Installed Bx-Connector, Extended Thru Bolts
Full Load Amps
1.60-1.30 A
Ins. Class
B
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Finish
Green
Frame Material
Rolled steel
Max. Ambient Temperature
40 Degrees C
Duty
Continuous Air Over
Hz
60/50 Hz
Capacitor Required
2MDV4
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Application
Farm Duty
Replacement For
5M078

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.60-1.30 A, 48Y Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Motor Frame Material Steel
