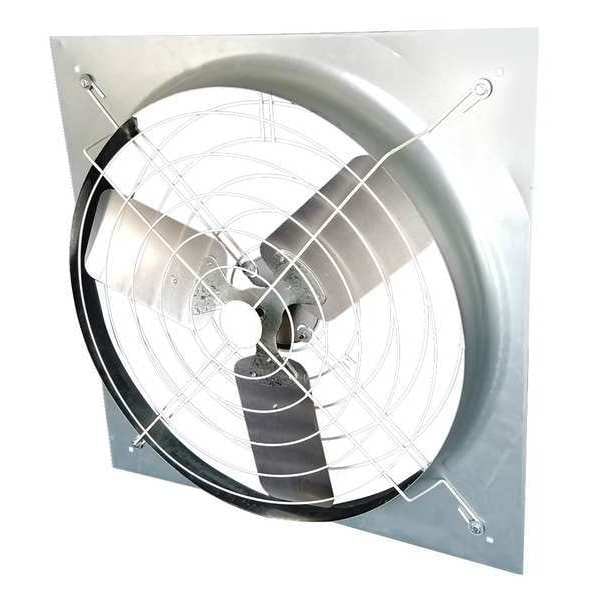

Dayton Air Circulator, Ceiling, IBeam, Pedestal, Wall Mount, 24 in Blade Dia, 115/230V, Non-Oscillating 24P4G-13-G - main
Shop DAYTON

Air Circulator, Ceiling, IBeam, Pedestal, Wall Mount, 24 in Blade Dia, 115/230V, Non-Oscillating

  • Mfr # 24P4G-13-G

  • Zoro # G5565248

product price:  $348.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
24P4G-13-G
Zoro #
G5565248
UPC #
00194484300883
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Outside Dia.
30 in
Shaft Dia.
1/2 in
Width
9 in
Max. Depth
11 in
Height
30 in
Fan Cord Length
9 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V
Phase
1
Motor HP
1/3
Air Flow
3,450/3,800/3,850 cfm
Drive Type
Direct Drive
Blade Material
Galvalume(R)
Sound Level
61 dBA
Item
Air Circulator
Includes
Mounting Accessory
Hz
60
Environmental Applications
Agricultural
Housing Material
Steel
CFM Low
3450
Number of Blades
3
Fan Mounting Location
Ceiling, IBeam, Pedestal, Wall
Motor RPM
1,725 RPM
CFM Medium
3800
Application
Spot Cooling; Air Circulation
Max. Ambient Temp.
120 Degrees F
Guard Material
Steel
Wire Guard Finish
Powder Coated
Watts
334 W
CFM High
3850
Mobile/Stationary
Stationary
Assembled
Yes
Motor Type
Split Phase
Thermal Protection
yes
Motor Insulation
Class B
Bearing Type
Permanently Lubricated Sealed Ball
Material
Steel
Amps
3.5/1.7
Motor hp
1/3 hp

Description

Air Circulator, Assembled Yes, Blade Diameter 24 in, Blade Material Galvalume(R), Drive Type Direct, Duct Diameter Not Applicable, Guard Finish Powder Coated, Guard Material Steel, Housing Material Steel, Includes Mounting Accessory
