Shop DAYTON

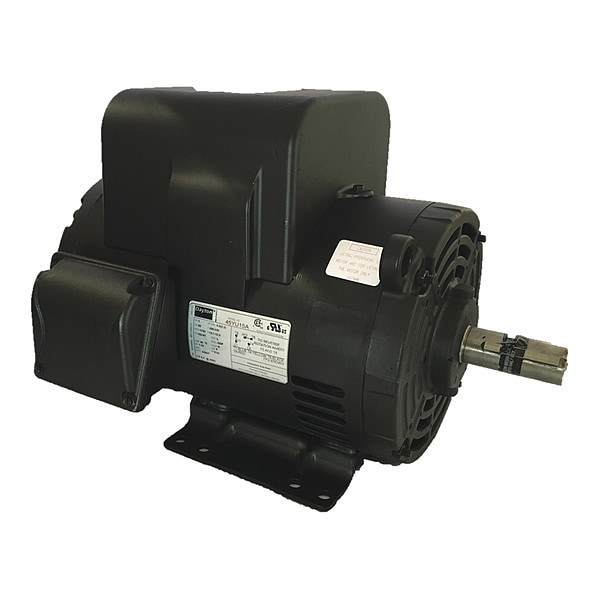

Air Compressor Motor, 3 hp, 208-230V AC

  • Mfr # 45YU15

  • Zoro # G9063720

product price:
$
752.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
HP
3 hp
RPM Range
1,701-1,800
Voltage
208-230V AC
Frame
182-4T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45YU15
Zoro #
G9063720
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Overall Length
15 1/2 in
Shaft Length
2 3/4 in
Length Less Shaft
12 7/8 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
15 1/2 in
Length
15 1/2 in

Details

Item
Air Compressor Motor
Motor Design
Capacitor-Start/Run
HP
3 hp
RPM Range
1,701-1,800
Voltage
208-230V AC
Frame
182-4T
Motor Thermal Protection
Manual
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Motor Service Factor
1.15
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Nameplate RPM
1,765 RPM
Phase
Single
Ins. Class
F
Standards
CSA, UL Listed
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Hz
60 Hz
Full Load Amps
13.7-12.8 A
Motor Application
Air Compressor
Duty Cycle
Continuous
Motor Sub Application
Condenser Fan
Part Winding Start Capable
Across-the-Line
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
CC Number
CC029A
Maximum Run Time
24 hr
Inverter Rated
Not Inverter Rated
Nominal Efficiency
81.5 %
No. of Speeds
1
Weight
70.32 lb
NEMA Design
L
Motor Frame Material
Steel

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 13.7-12.8 A, 182-4T Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
